OKW - Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operat

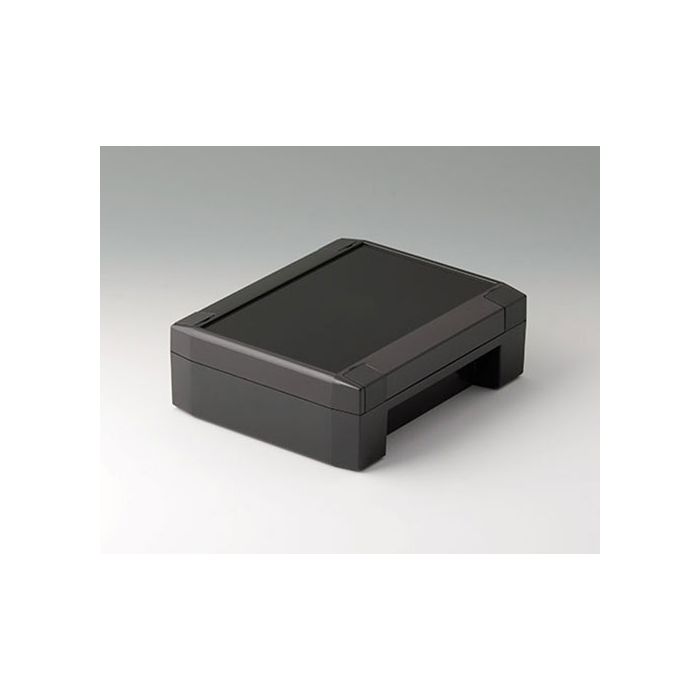

Functional, high-quality industrial enclosure – robust, waterproof and stylish. Highly polished enclosure surface with design trims for concealed screw connection outside the sealed area. The seal is already inserted in the top part. Recessed operating area in the top protects a membrane keypad or design foil. Fastening pillars for PCBs or mounting plates in the bottom and top parts. Bottom part also with two pillars for mounting a DIN rail and with pre-moulded mounts for use with VESA 75x75 standard holders. Plastic material with increased heat distortion temperature (Vicat/B 120 = 110°C), UL registration 94 V-0 from 1.5 mm, glow wire flammability index (GWFI): 960°C at 2.0 mm, chlorine- and bromine-free flame resistance. Supply: 1 bottom and 1 top part with seal, 4 design trims, assembly kit

Documentation: 2D_PDF_Drawing_link

Documentation: 3D_PDF_View_link
