OKW - High electronic case with snap-lock mechanism, screw towers, no ventilation slots
Lei 88.00
Lei 73.95
In stock
SKU
B1060365
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

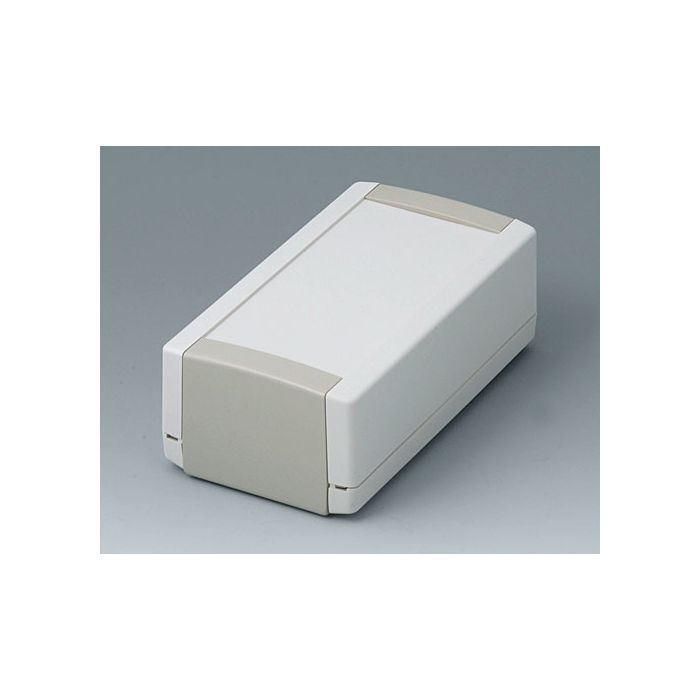

High electronic case with snap-lock mechanism, screw towers, no ventilation slots
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base. Version Without ventilations slots Supply 1 case-top and base, 2 end panels
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B1060365 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | Bottom and top part off-white RAL 9002, End panels pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 84 mm |
| Length | 154 mm |
| Height | 56 mm |
| Protection class | IP 40 |
| PCB Length, Base | 147 mm |
| PCB Width, Base | 75 mm |
| PCB Length, Top | 122 mm |
| PCB Width, Top | 75 mm |
| Keypad Length | 125.9 mm |
| Keypad Width | 60.1 mm |
