OKW - High electronic case with snap-lock, screw towers, no ventilation slots. Includes 1 case-top and base, 2 end panels. [68 mm x 123 mm x 45 mm]
Lei 81.00
Lei 66.94
In stock
SKU
B1050369
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

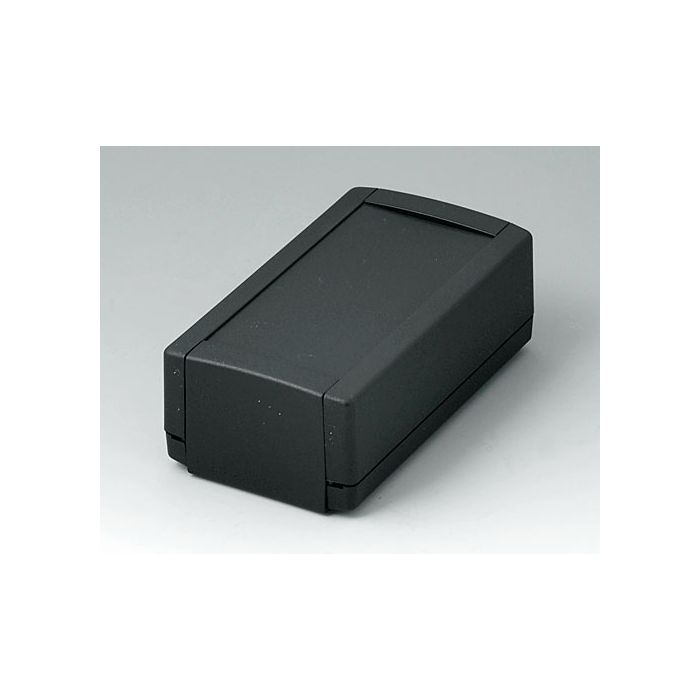

High electronic case with snap-lock, screw towers, no ventilation slots. Includes 1 case-top and base, 2 end panels.
Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom. Version: Without ventilations slots. Supply: 1 case-top and base, 2 end panels.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B1050369 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 68 mm |
| Length | 123 mm |
| Height | 45 mm |
| Protection class | IP 40 |
| PCB Length, Base | 116 mm |
| PCB Width, Base | 60 mm |
| PCB Length, Top | 96 mm |
| PCB Width, Top | 60 mm |
| Keypad Length | 100.6 mm |
| Keypad Width | 48 mm |
