OKW - High construction two-part case with ergonomic operating area and interfaces at the top rear
Lei 139.00
Lei 116.81
In stock
SKU
A0615107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

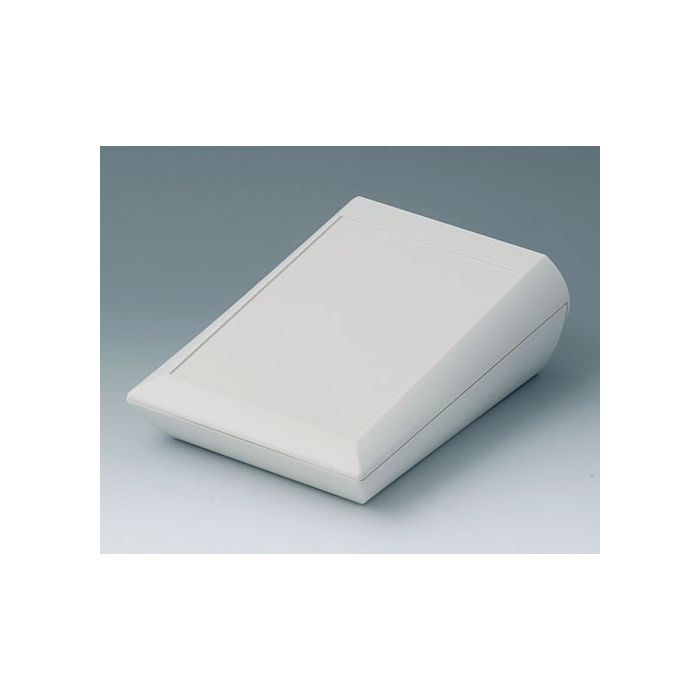

High construction two-part case with ergonomic operating area and interfaces at the top rear
Two-part case in high construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear. Version Without battery compartment Supply 1 top and bottom part, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A0615107 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 150 mm |
| Height | 71.5 mm |
| Depth | 200 mm |
| Protection class | IP 40 |
| PCB Length, Base | 175 mm |
| PCB Width, Base | 124 mm |
| PCB Length, Top | 187 mm |
| PCB Width, Top | 130 mm |
| Keypad Length | 159.8 mm |
| Keypad Width | 117.85 mm |
