OKW - High construction two-part case, 10° sloped operating area, interfaces space, no battery compartment
Lei 115.00
Lei 96.64
In stock
SKU
A0612109
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

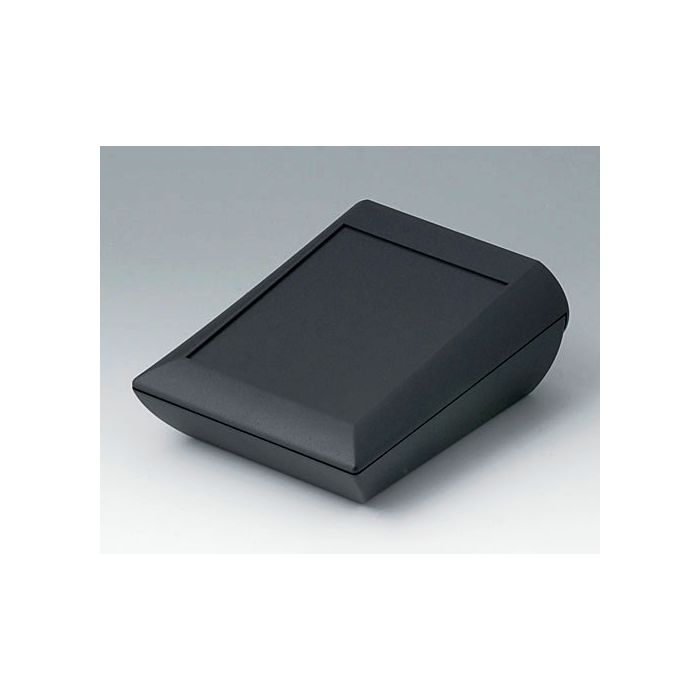

High construction two-part case, 10° sloped operating area, interfaces space, no battery compartment
Two-part case in high construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear. Version Without battery compartment Supply 1 top and bottom part, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A0612109 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 120 mm |
| Height | 62.8 mm |
| Depth | 150 mm |
| Protection class | IP 40 |
| PCB Length, Base | 123 mm |
| PCB Width, Base | 94 mm |
| PCB Length, Top | 137 mm |
| PCB Width, Top | 105 mm |
| Keypad Length | 109.85 mm |
| Keypad Width | 87.85 mm |
