OKW - 2-piece handheld enclosure with large operating panel, rounded contours, and IP65 protection
Lei 69.00
Lei 57.98
In stock
SKU
B5403307
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

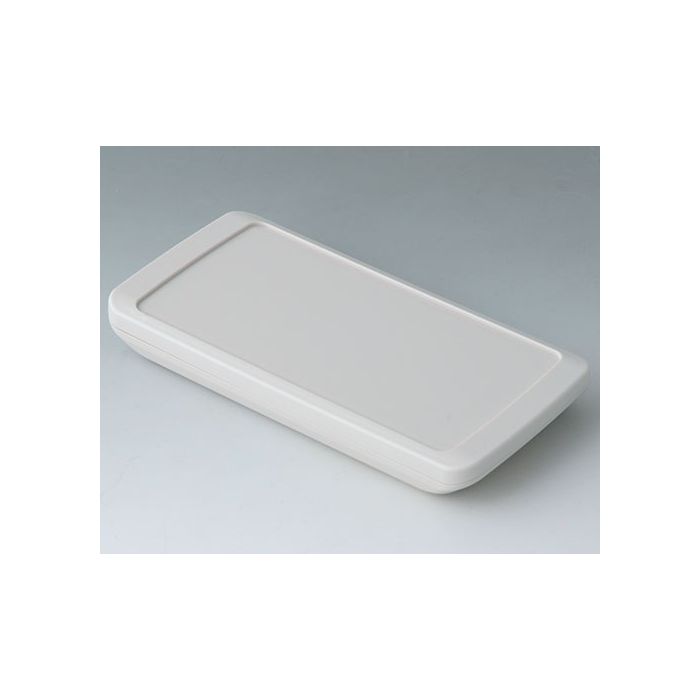

2-piece handheld enclosure with large operating panel, rounded contours, and IP65 protection
2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B5403307 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 74 mm |
| Length | 148 mm |
| Height | 19 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 126 mm |
| PCB Width, Base | 64 mm |
| PCB Length, Top | 130 mm |
| PCB Width, Top | 64 mm |
