OKW - Handheld case with cable bush, membrane keyboard area, PCB mounting.
Lei 60.00
Lei 50.42
In stock
SKU
A9066329
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

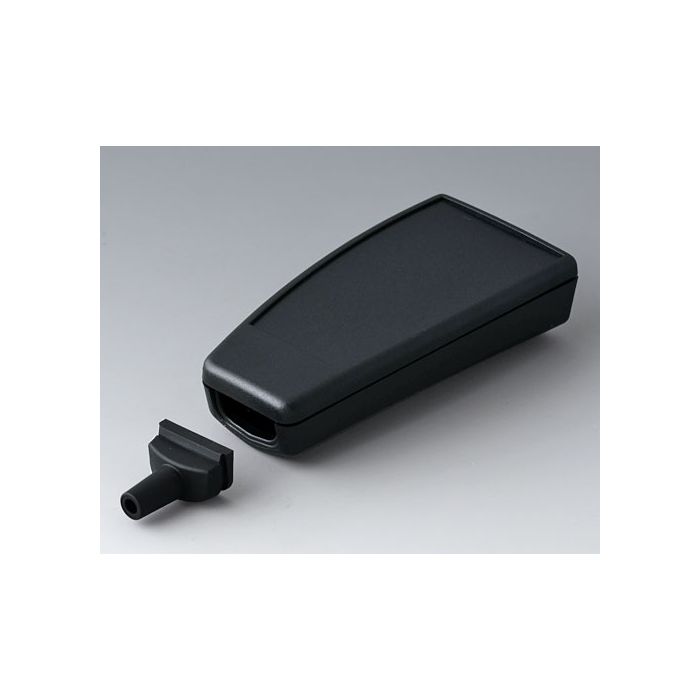

Handheld case with cable bush, membrane keyboard area, PCB mounting.
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Version: Without battery compartment, bottom part with cable strain (5 - 5.9 mm). Supply: Case-top and base, cable strain, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9066329 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB), SEBS (TPE) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 47 mm |
| Length | 96 mm |
| Height | 24 mm |
| Protection class | IP 40 |
| PCB Length, Base | 58 mm |
| PCB Width, Base | 38 mm |
| PCB Length, Top | 61 mm |
| PCB Width, Top | 40 mm |
| Keypad Length | 74.6 mm |
| Keypad Width | 40.3 mm |
