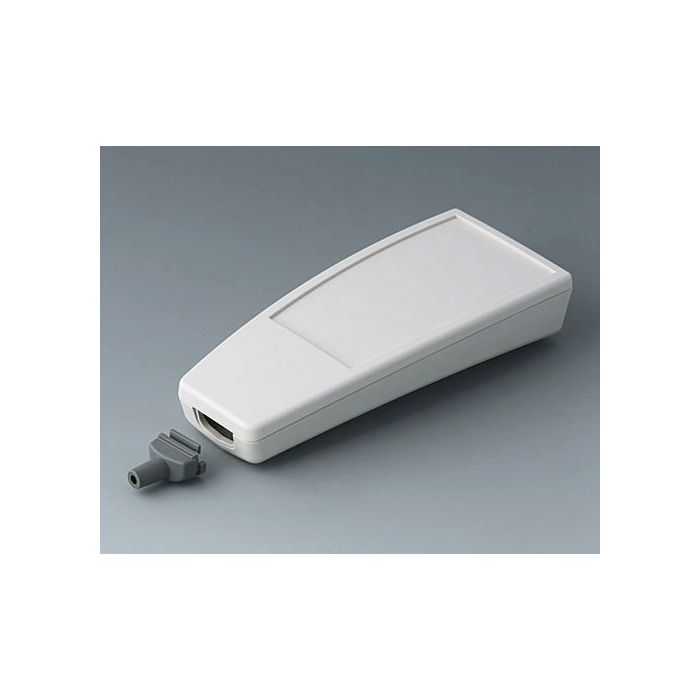

Handheld case with cable bush and membrane keyboard area
Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9068127 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB), SEBS (TPE) |
| Colour | Enclosure off-white RAL 9002, Cable gland volcano |
| Standards | RoHS compliant, REACH compliant |
| Width | 74.4 mm |
| Length | 168 mm |
| Height | 35.4 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 127 mm |
| PCB Width, Base | 61 mm |
| PCB Length, Top | 132 mm |
| PCB Width, Top | 61 mm |
| Keypad Length | 110.5 mm |
| Keypad Width | 61.5 mm |
