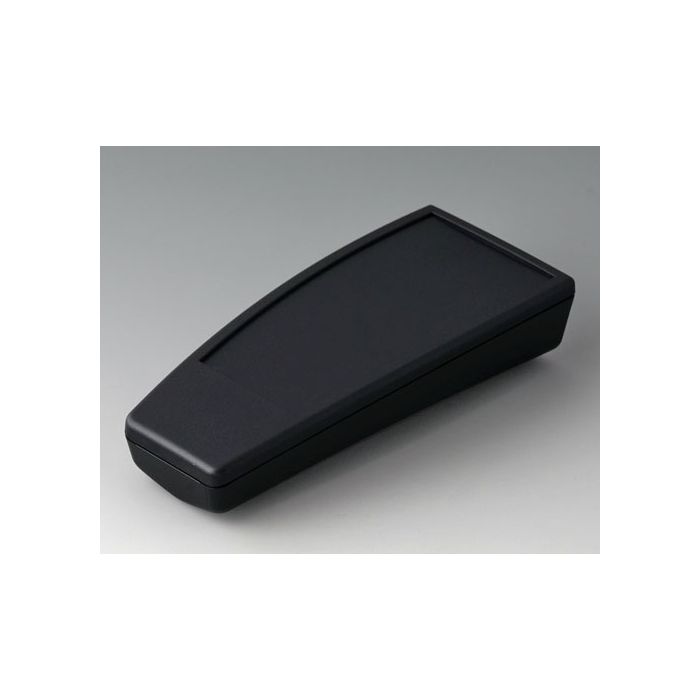

OKW - Handheld case, two-part, no battery compartment, membrane keyboard area, polished front, without battery compartment
Lei 92.00
Lei 77.31
In stock
SKU
A9067219
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Handheld case, two-part, no battery compartment, membrane keyboard area, polished front, without battery compartment
Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Version: Without battery compartment. Supply: Case-top and base, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9067219 |
|---|---|
| Manufacturer | OKW |
| Material | PMMA (IR) (UL 94 HB) - Bottom part, ABS (UL 94 HB) - Top part |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 62.7 mm |
| Length | 140 mm |
| Height | 30.5 mm |
| PCB Length, Base | 89 mm |
| PCB Width, Base | 51 mm |
| PCB Length, Top | 117 mm |
| PCB Width, Top | 51 mm |
| Keypad Length | 103.5 mm |
| Keypad Width | 51.2 mm |
