OKW - Handheld case with cable bush, membrane keyboard area, PCB fixation. No battery compartment, cable strain. Top & base parts included.
Lei 60.00
Lei 50.42
In stock
SKU
A9066349
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Handheld case with cable bush, membrane keyboard area, PCB fixation. No battery compartment, cable strain. Top & base parts included.

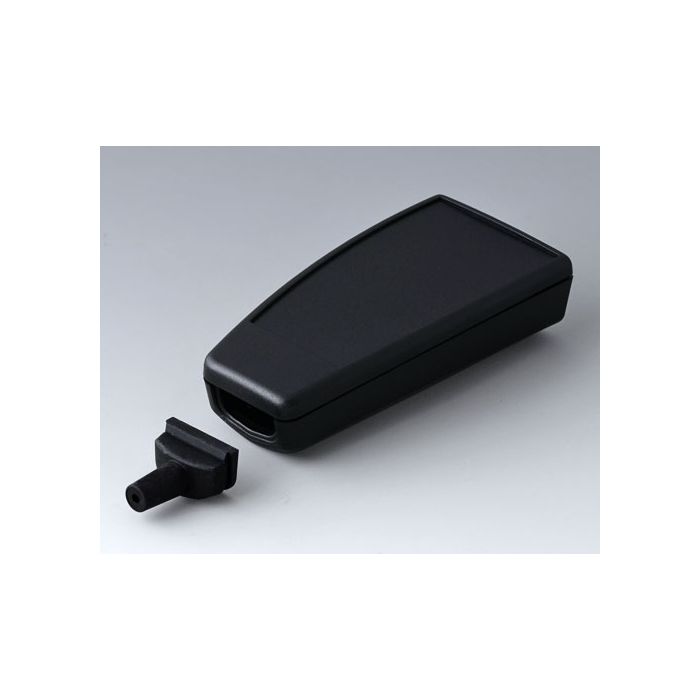

Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Version: Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm). Supply: Case-top and base, cable strain, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9066349 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB), SEBS (TPE) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 47 mm |
| Length | 96 mm |
| Height | 24 mm |
| Protection class | IP 40 |
| PCB Length, Base | 58 mm |
| PCB Width, Base | 38 mm |
| PCB Length, Top | 61 mm |
| PCB Width, Top | 40 mm |
| Keypad Length | 74.6 mm |
| Keypad Width | 40.3 mm |
