OKW - Ergonomic three-piece enclosure, IP40, battery compartment for 2 AAA batteries
Lei 67.00
Lei 56.30
Out of stock
SKU
B2802016
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

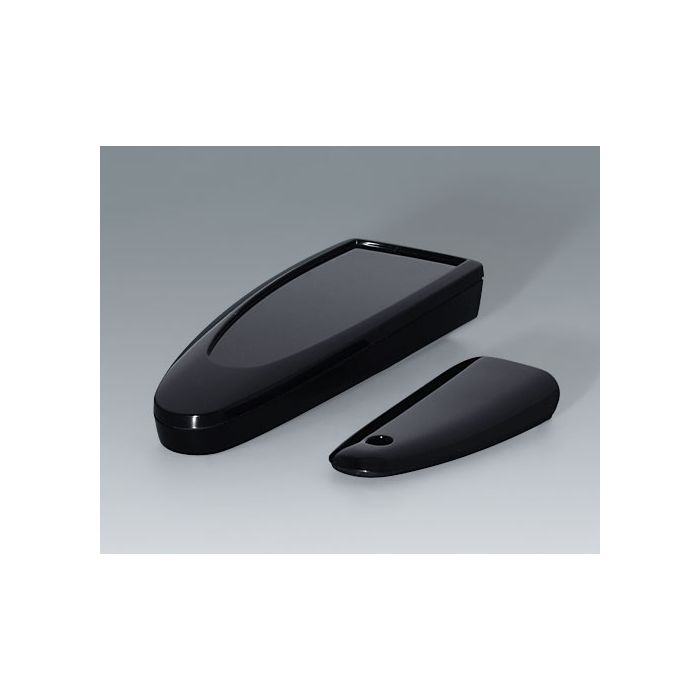

Ergonomic three-piece enclosure, IP40, battery compartment for 2 AAA batteries
Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts.
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B2802016 |
|---|---|
| Manufacturer | OKW |
| Material | PMMA (IR) (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 48 mm |
| Length | 123 mm |
| Height | 24 mm |
| Protection class | IP 40 |
| PCB Length, Base | 36 mm |
| PCB Width, Base | 22 mm |
| PCB Length, Top | 41.5 mm |
| PCB Width, Top | 34.6 mm |
