OKW - Hand-held enclosure, ergonomic design, IP40, battery compartment for 2 AAA batteries
Lei 67.00
Lei 56.30
In stock
SKU
B2802017
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Hand-held enclosure, ergonomic design, IP40, battery compartment for 2 AAA batteries

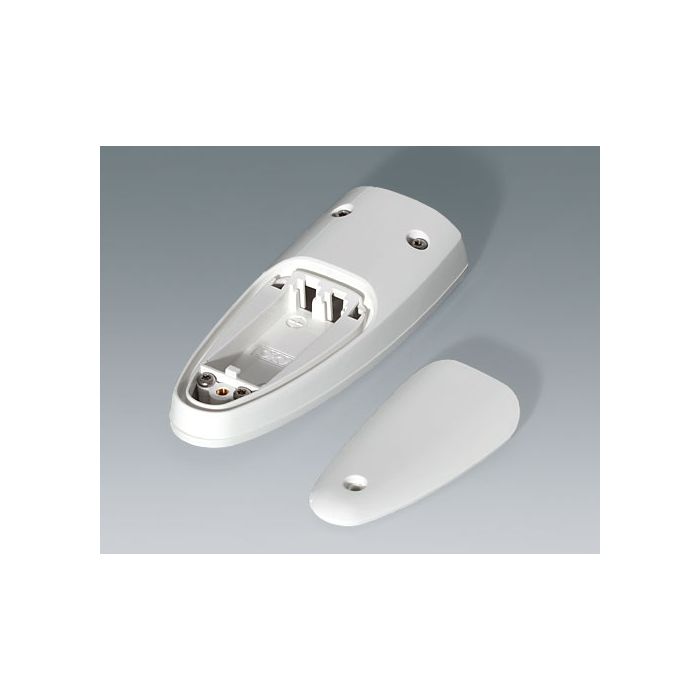

Three-piece hand-held enclosure with an ergonomic, robust design and a pleasant touch sensation. Protection class IP 40 without sealing kit. Attachment pillars for PCBs and components in the top and bottom parts. Battery compartment accessible from the outside, with screwed battery compartment lid in the bottom part of the enclosure. Battery compartment for 2 x 1.5 V AAA batteries.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B2802017 |
|---|---|
| Manufacturer | OKW |
| Material | ASA (UL 94 HB) |
| Colour | traffic white RAL 9016 |
| Standards | RoHS compliant, REACH compliant |
| Width | 48 mm |
| Length | 123 mm |
| Height | 24 mm |
| Protection class | IP 40 |
| PCB Length, Base | 36 mm |
| PCB Width, Base | 22 mm |
| PCB Length, Top | 41.5 mm |
| PCB Width, Top | 34.6 mm |
