OKW - Hand-Held Case for versatile use with easy operation and display area [94 mm x 200 mm x 40 mm]
Lei 105.00
Lei 86.78
In stock
SKU
A9076209
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

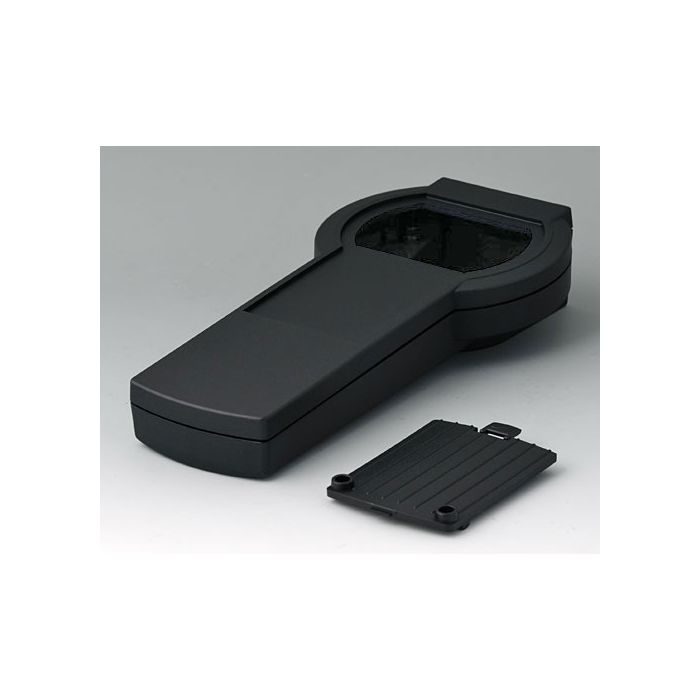

Hand-Held Case for versatile use with easy operation and display area
Hand-Held Case for variable use with specially manageable operation and display area, for display and graphic modules. Reccesed operation area for membrane keyboards. Battery compartment lid alternatively snapped-on and/or screwed down.(battery compartment as accessory). Top part with maximum sized cutout for display modules. Supply: Top and base part, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9076209 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 94 mm |
| Length | 200 mm |
| Height | 40 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 190 mm |
| PCB Width, Base | 46 mm |
| PCB Length, Top | 150 mm |
| PCB Width, Top | 47 mm |
| Keypad Length | 116 mm |
| Keypad Width | 50 mm |
