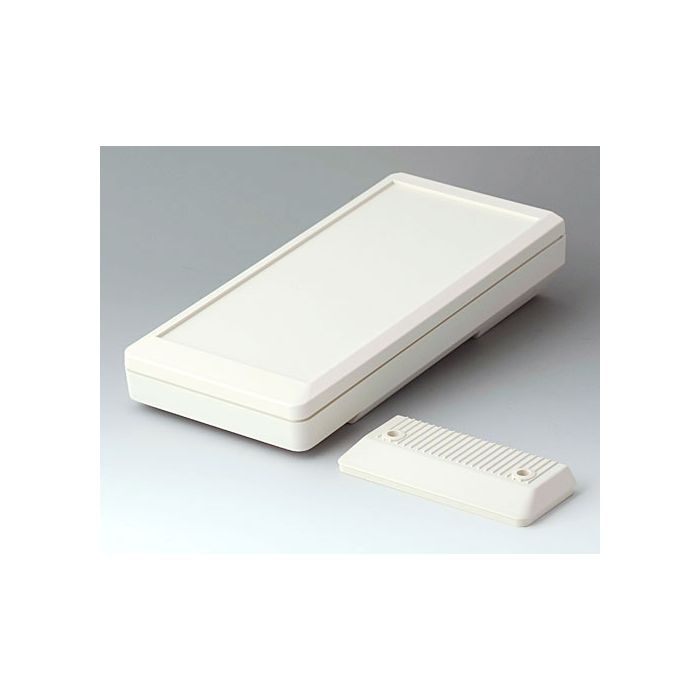

OKW - Hand-held box for Eurocard PCBs, membrane keyboards, battery compartment, IP65 sealing, top version with closed operating area.
Lei 200.00
Lei 168.07
In stock
SKU
A9075107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Hand-held box for Eurocard PCBs, membrane keyboards, battery compartment, IP65 sealing, top version with closed operating area.
Hand-held box with wide range of applications. Prepared for mounting PCBs of Eurocard size. Large control area for membrane keyboards and controls. Battery compartment accessible from the outside, for 4 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Sealing for IP 65 as accessory. Version: Top with closed operating area, recessed by 2.2 mm. Supply: Case-top and base, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 121 mm |
| Length | 252 mm |
| Height | 50 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 190 mm |
| PCB Width, Base | 108 mm |
| PCB Length, Top | 241 mm |
| PCB Width, Top | 110 mm |
| Keypad Length | 218.7 mm |
| Keypad Width | 100.7 mm |
