OKW - Hand-held box with battery compartment for 2 x 1.5V or 1 x 9V batteries
Lei 129.00
Lei 108.40
Out of stock
SKU
A9073107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Hand-held box with battery compartment for 2 x 1.5V or 1 x 9V batteries

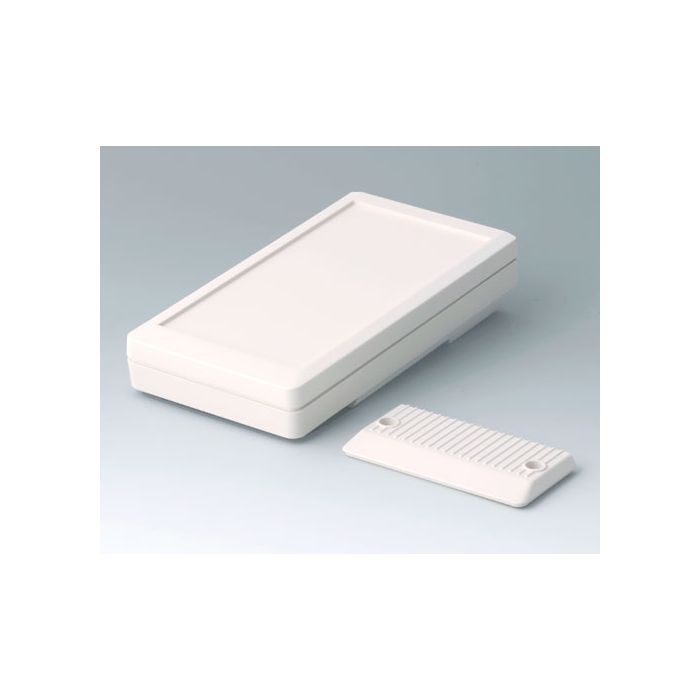

Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery (PP3). Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory. Top with closed operating area, recessed by 1.7 mm. Case-top and base, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9073107 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 83 mm |
| Length | 152 mm |
| Height | 33.5 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 104 mm |
| PCB Width, Base | 72 mm |
| PCB Length, Top | 141 mm |
| PCB Width, Top | 72 mm |
| Keypad Length | 129 mm |
| Keypad Width | 67.7 mm |
