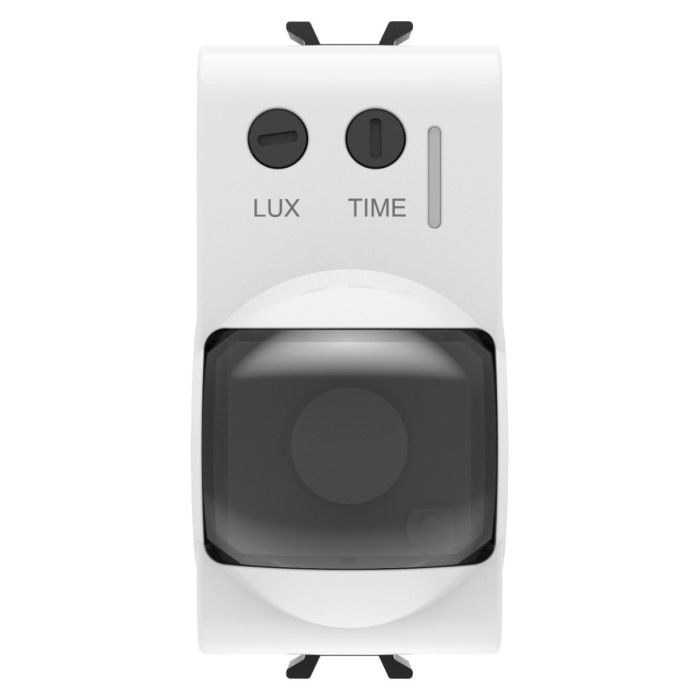

GEWISS - INFRARED MOVEMENT DETECTOR - 230 V ac 50/60 Hz - GLOSSY WHITE - 1 MODULE - CHORUSMART
Lei 436.00
Lei 366.39
In stock
SKU
GW10594
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Range: CHORUSMART - Domestic range
Glossy white modular devices
The ChoruSmart modular devices allow you to create infinite combinations of devices and plates, thanks to a complete range that covers all design, functional and installation needs.
Colours and finishes: glossy white, bright and versatile.
Unlimited functions in compact spaces: the ChoruSmart range consists of button keys with ½, 1 and 2 rocker modules, to optimise space according to needs, and axial buttons in the EVO or SMART version, to meet the latest requirements.
Front coupling: front coupling allows the components to be assembled and released quickly and easily, with no need to remove the support, which is the same for all plates and boxes.
Colours and finishes: glossy white, bright and versatile.
Unlimited functions in compact spaces: the ChoruSmart range consists of button keys with ½, 1 and 2 rocker modules, to optimise space according to needs, and axial buttons in the EVO or SMART version, to meet the latest requirements.
Front coupling: front coupling allows the components to be assembled and released quickly and easily, with no need to remove the support, which is the same for all plates and boxes.
Documents & Downloads:
Write Your Own Review
| Manufacturer | GEWISS |
|---|---|
| Manufacturer code | GW10594 |
| Order Unit | Buc |
| Output contacts | 1NO 3 A (AC1) 230 V c.a. |
| Colour | Alb lucios |
| Supply voltage | 230V ac - 50/60 Hz |
| Technology | Infraroșu |
| Standard | EN 60669-1, EN 60669-2-1 |
| Resistance at test voltage | 2000 V at 50 Hz for 1 minute |
| Insulation resistance | > 5 MOhm |
| Wiring terminals | Conţinut |
| Prolonged operation switch (no.of position changes) | 40.000 la In 250 V c.a. cosφ=0,6 |
| Thermo-pressure with ball | 125 °C |
| Glow Wire Test | 850 °C |
| Terminal grip on cable traction | > 50 N |
| Terminal tightening capacity stranded cables (mm2) | min. 0,75 - max. 2x4 |
| Terminal tightening capacity solid cables (mm2) | min. 0,5 - max. 2x2,5 |
| No. Chorus modules | 1 |
| Electrocod | 0513 |
| Ware number | 85365080 |
