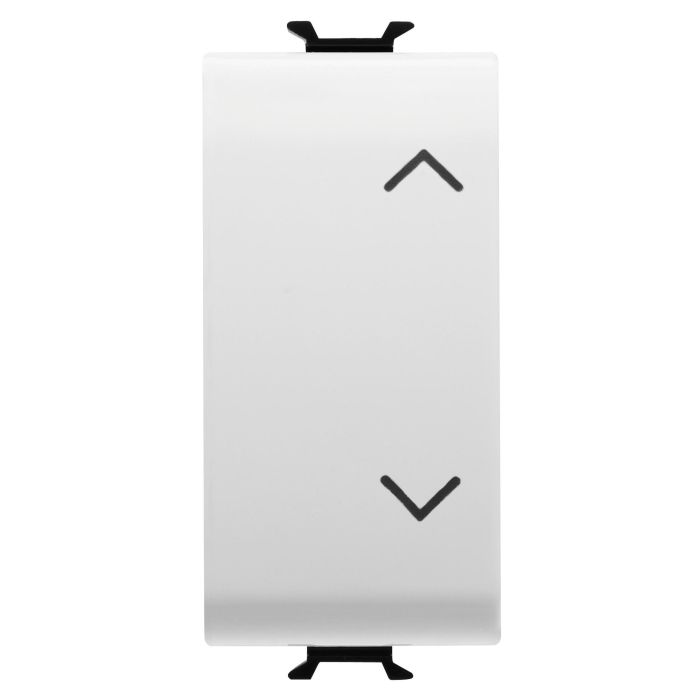

GEWISS - PUSH-BUTTON 1P 250V AC - NO+NO 10A - WITH INTERLOCK -SYMBOL: UP- DOWN - 1 MODULE - WHITE - CHORUS
Lei 26.81
Lei 22.53
In stock
Only 3 left
SKU
GW10140
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
The Chorus modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.Colours and finishes: glossy white, bright and versatile.Unlimited functions in reduced spaces: the Chorus range consists of button keys with ½, 1, 2 and 3 modules to optimise space as needed.Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support.
Write Your Own Review
| Manufacturer | GEWISS |
|---|---|
| Manufacturer code | GW10140 |
| Order Unit | Pce |
| Description | 1P NO+NO - 10A |
| Button Key | With interlock |
| Voltage | 250 V ac |
| Thermo-pressure with ball | 125 °C |
| Colour | White |
| Glow Wire Test | 850 °C |
| Number of modules | 1 |
| Standard | EN 60669-1 |
| Electrocod | 0130 |
| Resistance at test voltage | 2000 V at 50 Hz for 1 minute |
| Insulation resistance | > 5 MOhm |
| Wiring terminals | With screw |
| Prolonged operation switch (no.of position changes) | 40.000 at In 250 V ac cosØ=0,6 |
| Terminal grip on cable traction | > 50 N |
| Terminal tightening capacity stranded cables (mm2) | min. 0,75 - max. 2x4 |
| Terminal tightening capacity solid cables (mm2) | min. 0,5 - max. 2x2,5 |
