OKW - Flat two-part case with ergonomic operating area and interface space
Lei 136.00
Lei 114.29
In stock
SKU
A0615009
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

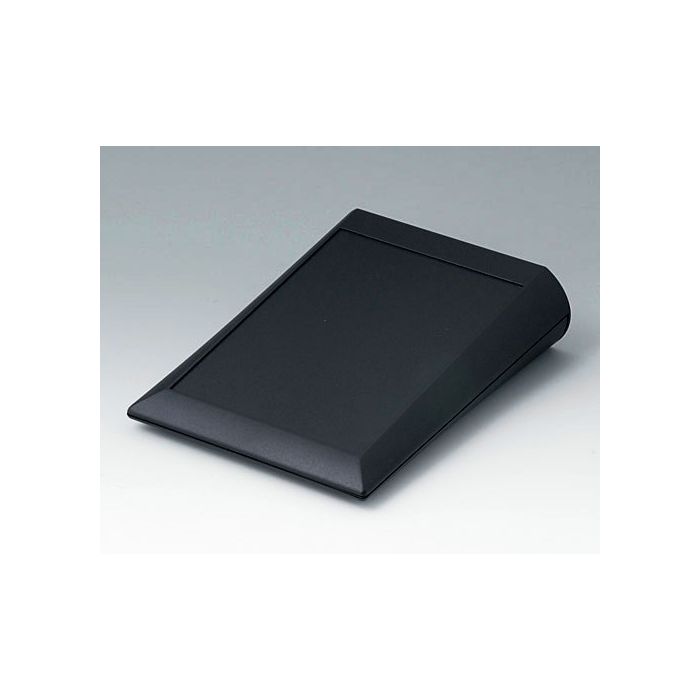

Flat two-part case with ergonomic operating area and interface space
Two-part case in flat construction for table top and wall mounted applications. Ergonomically operating area sloped by 10°, 1.2 mm recessed for protecting membrane keyboards. Fixing towers in bottom and top part. Big area for interfaces at the top part's rear. Version Without battery compartment Supply 1 top and bottom part, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A0615009 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 150 mm |
| Height | 51.5 mm |
| Depth | 200 mm |
| Protection class | IP 40 |
| PCB Length, Base | 175 mm |
| PCB Width, Base | 124 mm |
| PCB Length, Top | 187 mm |
| PCB Width, Top | 130 mm |
| Keypad Length | 159.8 mm |
| Keypad Width | 117.85 mm |
