OKW - Flat enclosure with closed connection sides, DIN rail mountable
Lei 23.23
Lei 19.52
In stock
SKU
B6501223
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

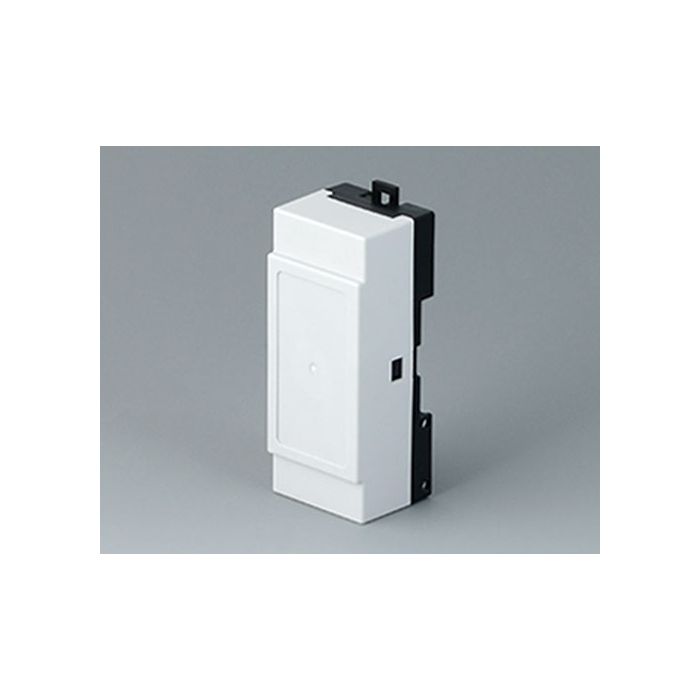

Flat enclosure with closed connection sides, DIN rail mountable
Enclosure with closed connection sides in flat version. Fast and simple locking capability onto DIN rails EN 60715 TH35 or direct wall mounting (acc.). Base part with fixing towers. Closed case with a generous operating area for displays, operating elements and interfaces. 1 base part with locking clip, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0), PPO (UL 94 V-0) |
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 35 mm |
| Height | 86 mm |
| Depth | 31.25 mm |
| PCB Length, Base | 82 mm |
| PCB Width, Base | 29.4 mm |
| Keypad Length | 50.8 mm |
| Keypad Width | 25.7 mm |
