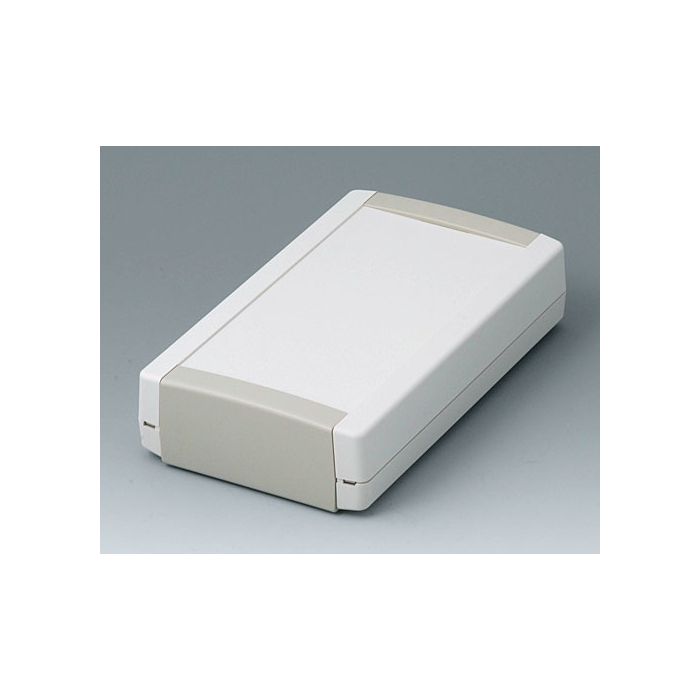

OKW - Flat electronic case, snap-lock assembly, screw towers, no ventilation slots, 1 case-top and base, 2 end panels
Lei 97.00
Lei 81.51
In stock
SKU
B1075365
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Flat electronic case, snap-lock assembly, screw towers, no ventilation slots, 1 case-top and base, 2 end panels
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base. Version: Without ventilations slots. Supply: 1 case-top and base, 2 end panels.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | Bottom and top part off-white RAL 9002, End panels pebble grey RAL 7032 |
| Standards | RoHS compliant, REACH compliant |
| Width | 115 mm |
| Length | 194 mm |
| Height | 46 mm |
| Protection class | IP 40 |
| PCB Length, Base | 187 mm |
| PCB Width, Base | 104 mm |
| PCB Length, Top | 158 mm |
| PCB Width, Top | 106 mm |
| Keypad Length | 163.2 mm |
| Keypad Width | 85 mm |
