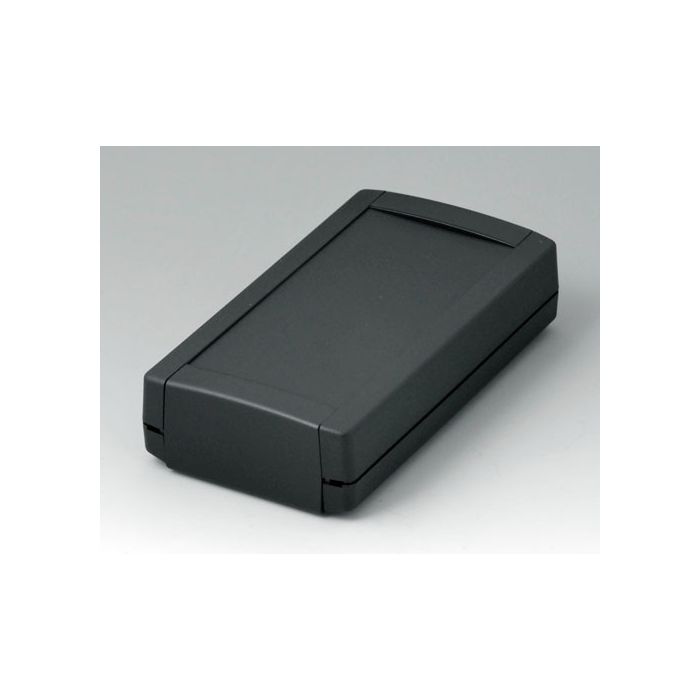

OKW - Flat electronic case with snap-lock mechanism [84 mm x 154 mm x 38 mm]
Lei 85.00
Lei 71.43
In stock
SKU
B1065369
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Flat electronic case with snap-lock mechanism
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base. Version: Without ventilations slots. Supply: 1 case-top and base, 2 end panels.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B1065369 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 84 mm |
| Length | 154 mm |
| Height | 38 mm |
| Protection class | IP 40 |
| PCB Length, Base | 147 mm |
| PCB Width, Base | 75 mm |
| PCB Length, Top | 122 mm |
| PCB Width, Top | 75 mm |
| Keypad Length | 125.5 mm |
| Keypad Width | 59.9 mm |
