OKW - Flat electronic case with snap-lock mechanism and ventilation slots
Lei 72.00
Lei 60.50
Out of stock
SKU
B1055469
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

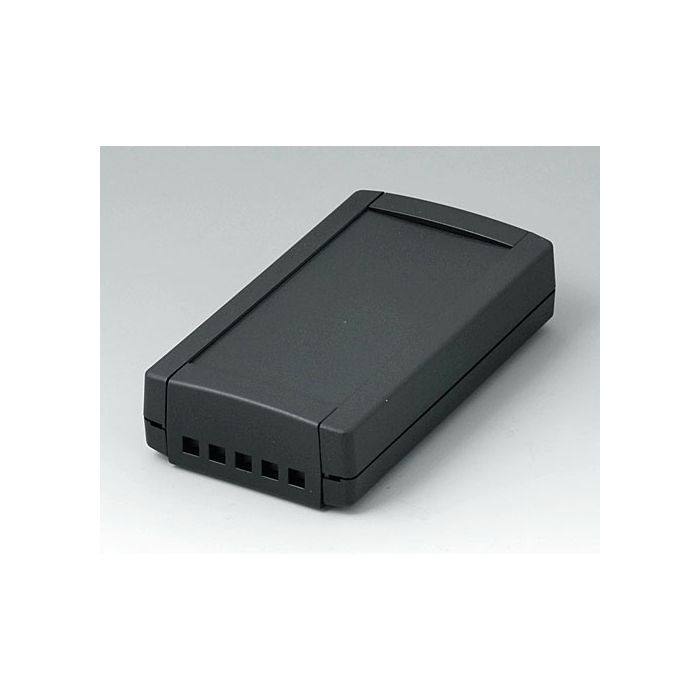

Flat electronic case with snap-lock mechanism and ventilation slots
Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom. Version With ventilations slots Supply 1 case-top and base, 2 end panels
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B1055469 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 68 mm |
| Length | 123 mm |
| Height | 30 mm |
| Protection class | IP 40 |
| PCB Length, Base | 112 mm |
| PCB Width, Base | 60 mm |
| PCB Length, Top | 96 mm |
| PCB Width, Top | 60 mm |
| Keypad Length | 100.5 mm |
| Keypad Width | 48 mm |
