OKW - Rational external installation, no special tools needed, IP68 protection, -20°C to +100°C temp range

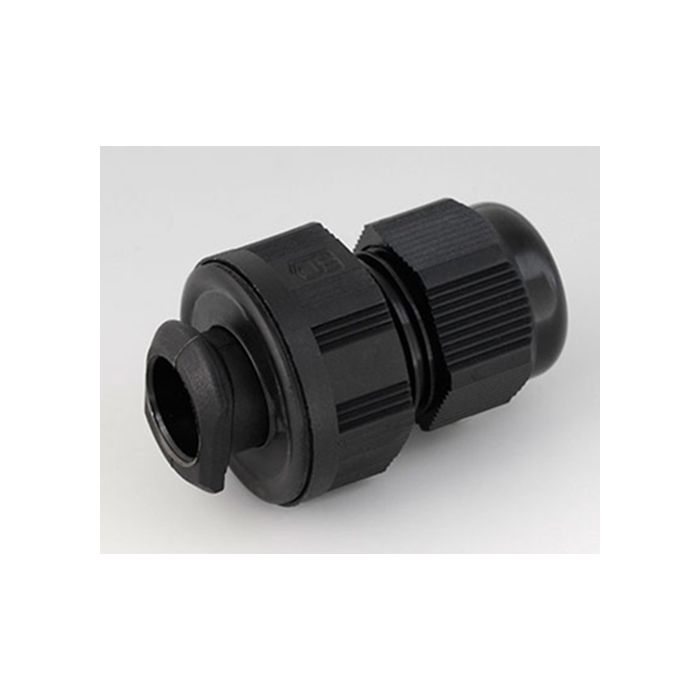

Rational installation from the outside, even in inaccessible places, without special tools: simply push the cable gland into the drilled hole and centre it. The screw connection can be tightened from the outside by means of a locknut that has a left-hand thread. Then feed in the cable and fix it as usual. The cable gland only extends into the enclosure for a few millimetres and so does not hinder any other component inside. It is fitted as standard with a strain relief and seal for protection class IP 68. It is suitable for wall thicknesses of 1 to 4 mm with a through hole in accordance with DIN 50262. Operating temperatures from -20°C to +100°C (dynamic) and -40°C (static, short-term).

Documentation: 2D_PDF_Drawing_link
