OKW - 2-part plastic enclosure, ergonomic design, IP65 protection, PCB fastening [155 mm x 250 mm x 54 mm]
Lei 121.00
Lei 101.68
In stock
SKU
A9486107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

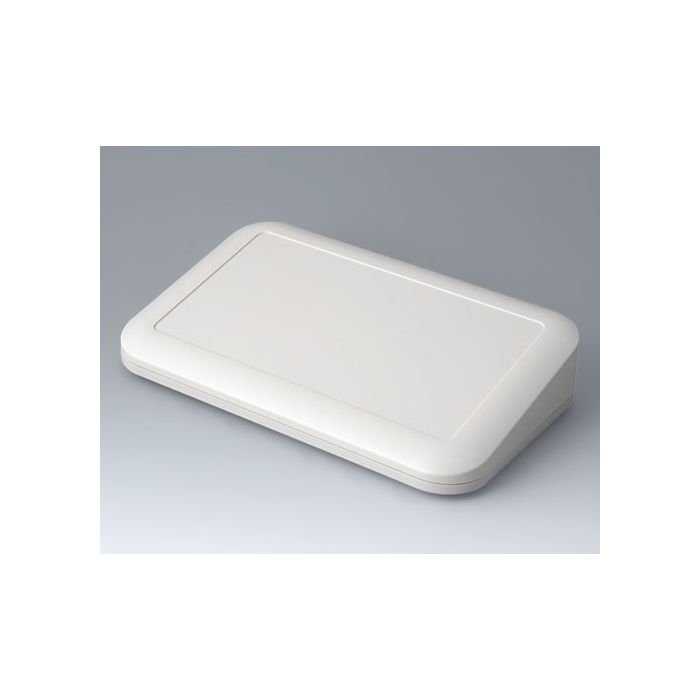

2-part plastic enclosure, ergonomic design, IP65 protection, PCB fastening
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element ordered separately.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9486107 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 155 mm |
| Length | 250 mm |
| Height | 54 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 240 mm |
| PCB Width, Base | 100 mm |
| PCB Length, Top | 240 mm |
| PCB Width, Top | 100 mm |
| Keypad Length | 205.9 mm |
| Keypad Width | 115 mm |
