OKW - Ergonomic 2-part plastic enclosure with 12° inclined panel, robust design, IP65 seal available.
Lei 101.00
Lei 84.87
In stock
SKU
A9446107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

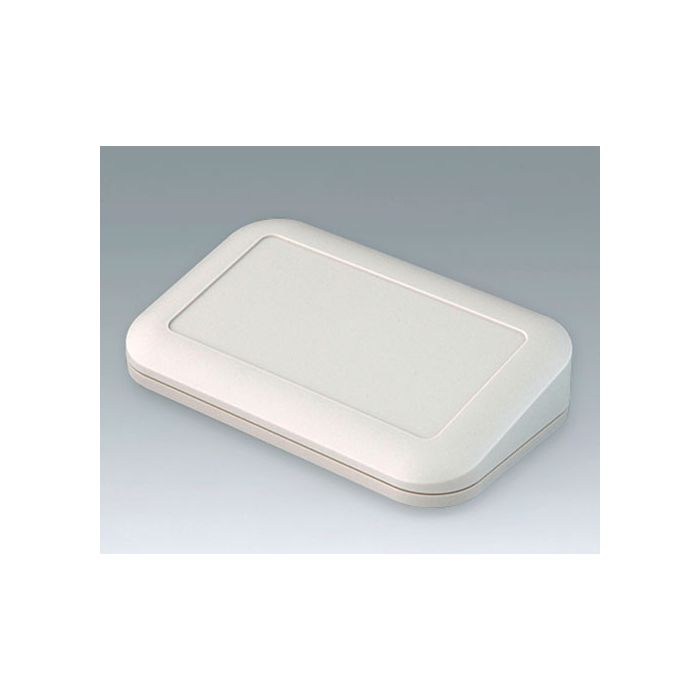

Ergonomic 2-part plastic enclosure with 12° inclined panel, robust design, IP65 seal available.
2-part plastic enclosure with operating panel ergonomically inclined by 12°. Top part with recessed area for protecting a membrane keypad or decor foil. Robust design. Case assembled with Torx drive stainless steel screws. Seal for protection class IP 65 available as an accessory. Fastening pillars for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 93 mm |
| Length | 150 mm |
| Height | 36 mm |
| Protection class | IP 65 opt., IP 40 |
| PCB Length, Base | 138 mm |
| PCB Width, Base | 80 mm |
| PCB Length, Top | 138 mm |
| PCB Width, Top | 80 mm |
| Keypad Length | 116 mm |
| Keypad Width | 61.3 mm |
