OKW - Ergonomic handheld case, two-part design, PCB fixing, polished front, integrated battery supports. [47 mm x 96 mm x 24 mm]
Lei 55.00
Lei 46.22
In stock
SKU
A9066219
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

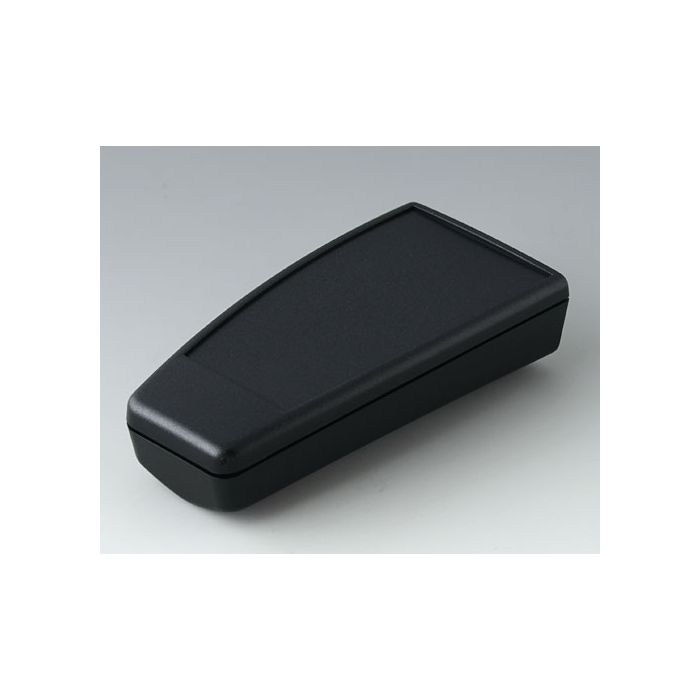

Ergonomic handheld case, two-part design, PCB fixing, polished front, integrated battery supports.
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA). Case-top with recessed operating area. Supply: Base and top part, 1 screw.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9066219 |
|---|---|
| Manufacturer | OKW |
| Material | PMMA (IR) (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 47 mm |
| Length | 96 mm |
| Height | 24 mm |
| Protection class | IP 40 |
| PCB Length, Base | 28 mm |
| PCB Width, Base | 38 mm |
| PCB Length, Top | 61 mm |
| PCB Width, Top | 40 mm |
| Keypad Length | 74.6 mm |
| Keypad Width | 40.3 mm |
