OKW - Ergonomic handheld case with polished front area, integrated supports for micro cells.
Lei 54.00
Lei 45.38
In stock
SKU
A9066209
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

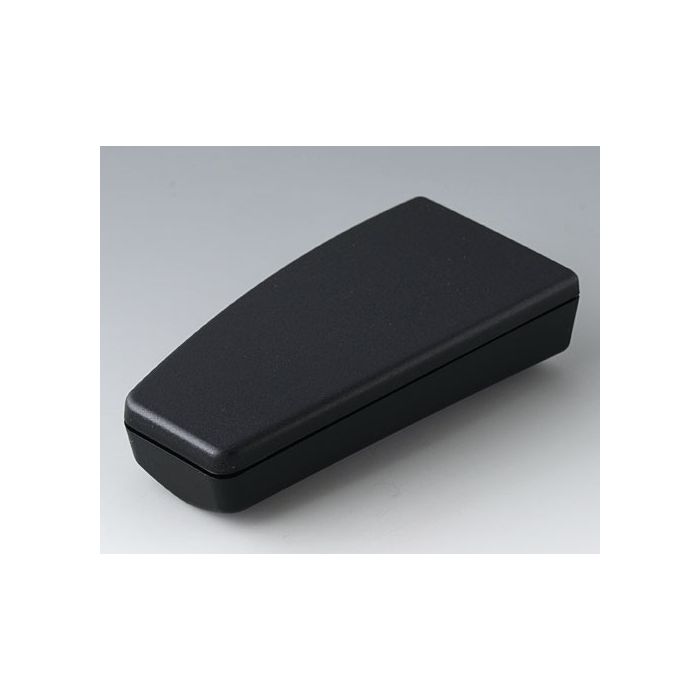

Ergonomic handheld case with polished front area, integrated supports for micro cells.
Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA). Case-top without recessed operating area. Supply: Base and top part, 1 screw.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9066209 |
|---|---|
| Manufacturer | OKW |
| Material | PMMA (IR) (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 47 mm |
| Length | 96 mm |
| Height | 24 mm |
| Protection class | IP 40 |
| PCB Length, Base | 28 mm |
| PCB Width, Base | 38 mm |
| PCB Length, Top | 61 mm |
| PCB Width, Top | 40 mm |
