OKW - Large ergonomic hand-held box with battery compartment for AA or PP3 batteries [74.4 mm x 168 mm x 35.4 mm]
Lei 105.00
Lei 88.24
In stock
SKU
A9068107
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

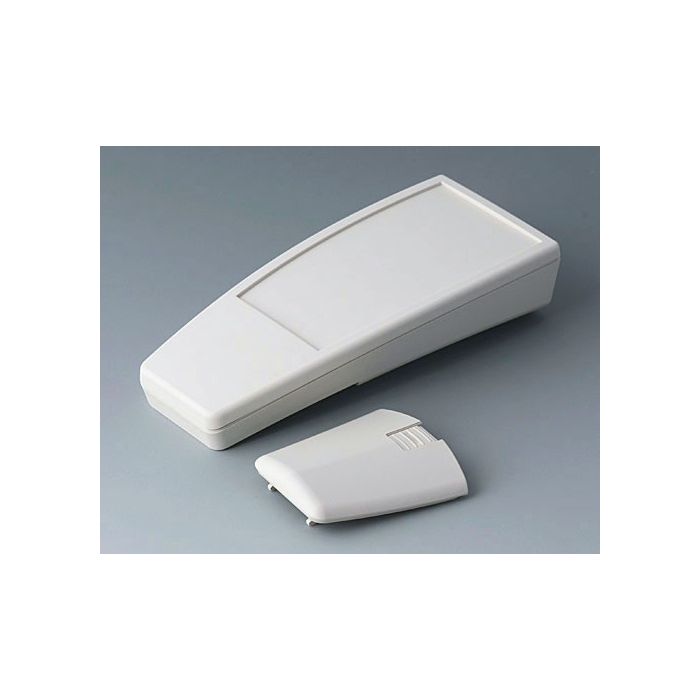

Large ergonomic hand-held box with battery compartment for AA or PP3 batteries
Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Version: With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery (PP3). Supply: Case-top and base, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9068107 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 74.4 mm |
| Length | 168 mm |
| Height | 35.4 mm |
| Protection class | IP 40 |
| PCB Length, Base | 84 mm |
| PCB Width, Base | 61 mm |
| PCB Length, Top | 94 mm |
| PCB Width, Top | 61 mm |
| Keypad Length | 110.5 mm |
| Keypad Width | 61.5 mm |
