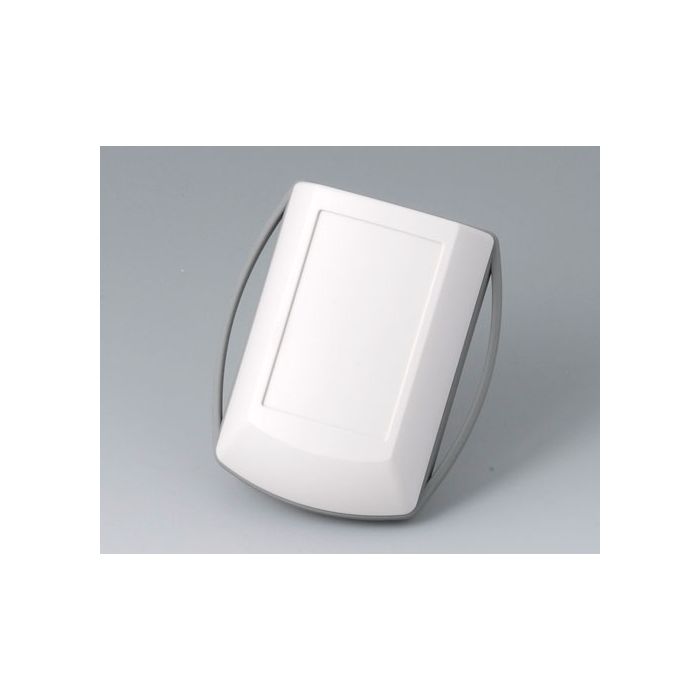

OKW - Ergonomic three-part body-worn enclosure with wrist strap and TPE ring. [56 mm x 82 mm x 24 mm]
Lei 69.00
Lei 57.02
In stock
SKU
B7040227
Free shipping for orders over 1000 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Ergonomic three-part body-worn enclosure with wrist strap and TPE ring.
Three-part enclosure in ergonomic design to wear on the body. Wrist strap as accessories. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B7040227 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB), TPE |
| Colour | Bottom and top part off-white RAL 9002, Intermediate ring volcano |
| Standards | RoHS compliant, REACH compliant |
| Width | 56 mm |
| Length | 82 mm |
| Height | 24 mm |
| Protection class | IP 42 |
| PCB Length, Base | 48 mm |
| PCB Width, Base | 45 mm |
| PCB Length, Top | 53 mm |
| PCB Width, Top | 40 mm |
| Keypad Length | 52 mm |
| Keypad Width | 33.1 mm |
