OKW - Ergonomic body-worn enclosure with recessed operating area and high top part.
Lei 91.00
Lei 76.47
Out of stock
SKU
B7005109
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

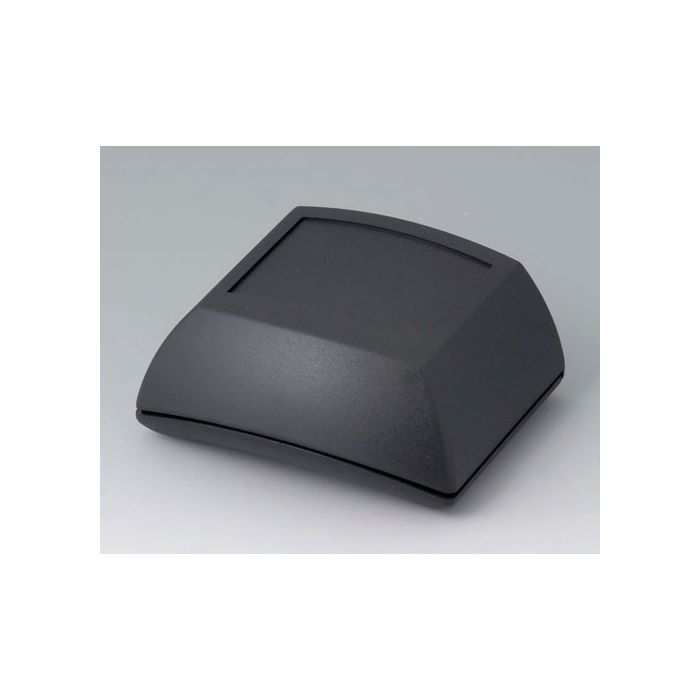

Ergonomic body-worn enclosure with recessed operating area and high top part.
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Version: With high top part. Supply: 1 top and 1 bottom part, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | black RAL 9005 |
| Standards | RoHS compliant, REACH compliant |
| Width | 96 mm |
| Length | 80 mm |
| Height | 44 mm |
| Protection class | IP 54 opt. |
| PCB Length, Top | 61 mm |
| PCB Width, Top | 56 mm |
| Keypad Length | 43.8 mm |
| Keypad Width | 58.25 mm |
