OKW - Ergonomic body-worn enclosure with recessed operating area and high top part.
Lei 157.00
Lei 131.93
In stock
SKU
B7025207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

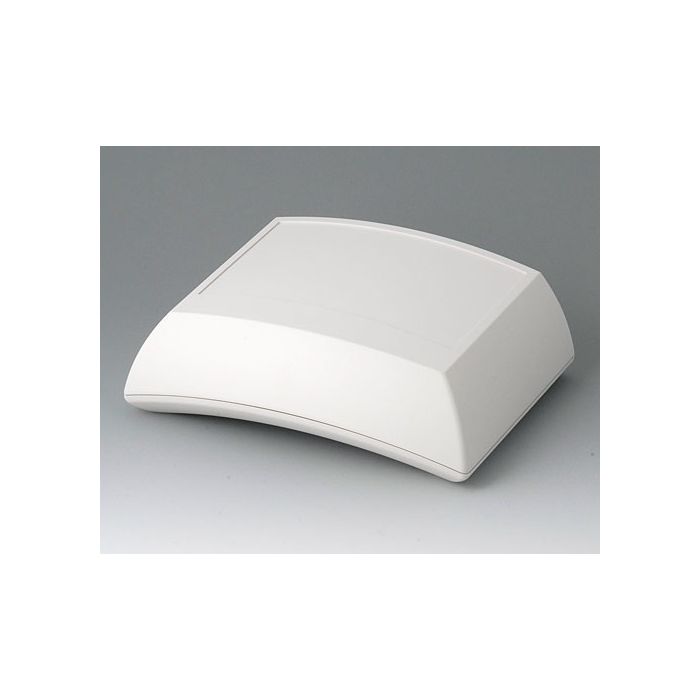

Ergonomic body-worn enclosure with recessed operating area and high top part.
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Version: With high top part. Supply: 1 top and 1 bottom part, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B7025207 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 200 mm |
| Length | 150 mm |
| Height | 69 mm |
| Protection class | IP 54 opt. |
| PCB Length, Top | 119 mm |
| PCB Width, Top | 160 mm |
| Keypad Length | 94 mm |
| Keypad Width | 149.1 mm |
