OKW - Ergonomic 3-part enclosure with TPE ring for PCBs and membrane keyboard protection
Lei 63.00
Lei 52.94
Out of stock
SKU
B7040237
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

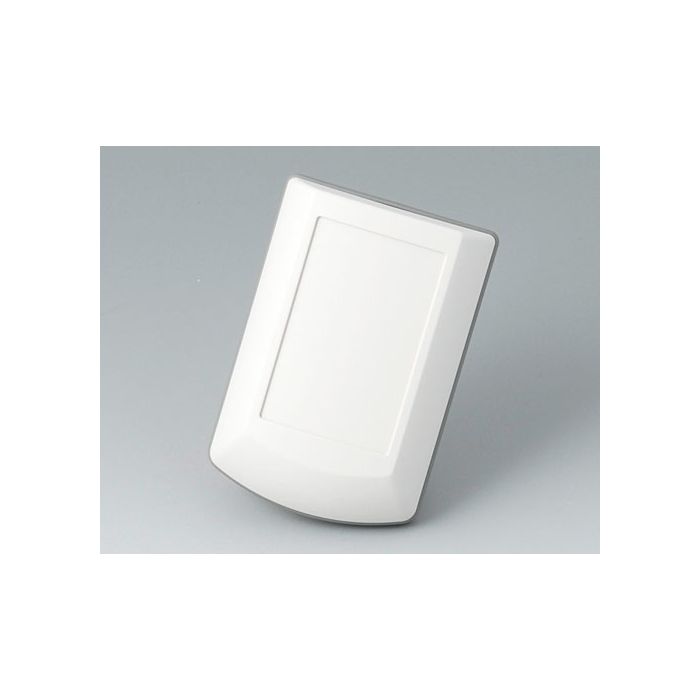

Ergonomic 3-part enclosure with TPE ring for PCBs and membrane keyboard protection
Three-part enclosure in ergonomic design. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard. Version TPE ring without eyelet hole Supply top and bottom part, ring, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB), TPE |
| Colour | Bottom and top part off-white RAL 9002, Intermediate ring volcano |
| Standards | RoHS compliant, REACH compliant |
| Width | 56 mm |
| Length | 82 mm |
| Height | 24 mm |
| Protection class | IP 42 |
| PCB Length, Base | 48 mm |
| PCB Width, Base | 45 mm |
| PCB Length, Top | 53 mm |
| PCB Width, Top | 40 mm |
| Keypad Length | 52 mm |
| Keypad Width | 33.1 mm |
