OKW - Enclosure with 2 open sides for terminal guards, easy assembly
Lei 35.00
Lei 29.41
In stock
SKU
B6702106
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

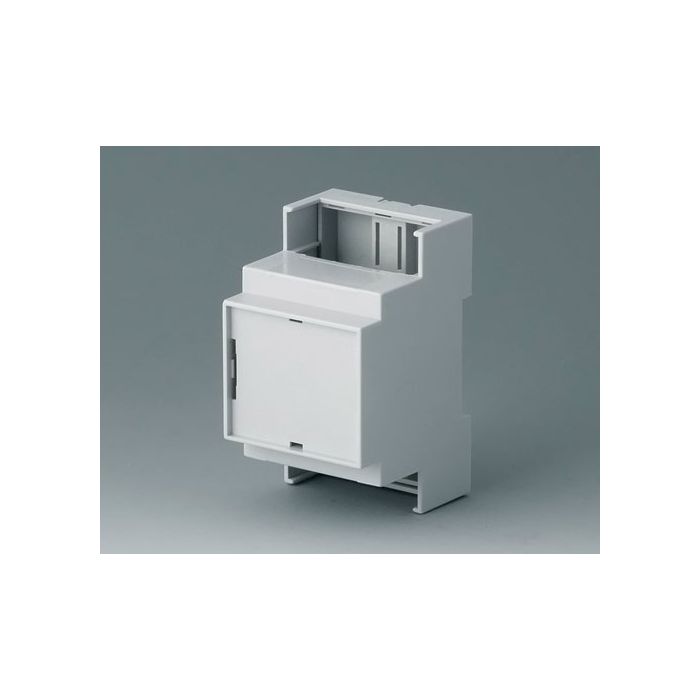

Enclosure with 2 open sides for terminal guards, easy assembly
Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0) |
| Colour | Bottom and top part light grey, Locking clip black/translucent |
| Standards | RoHS compliant, DIN EN 60715 TH35, REACH compliant |
| Width | 53 mm |
| Height | 90 mm |
| Depth | 58 mm |
