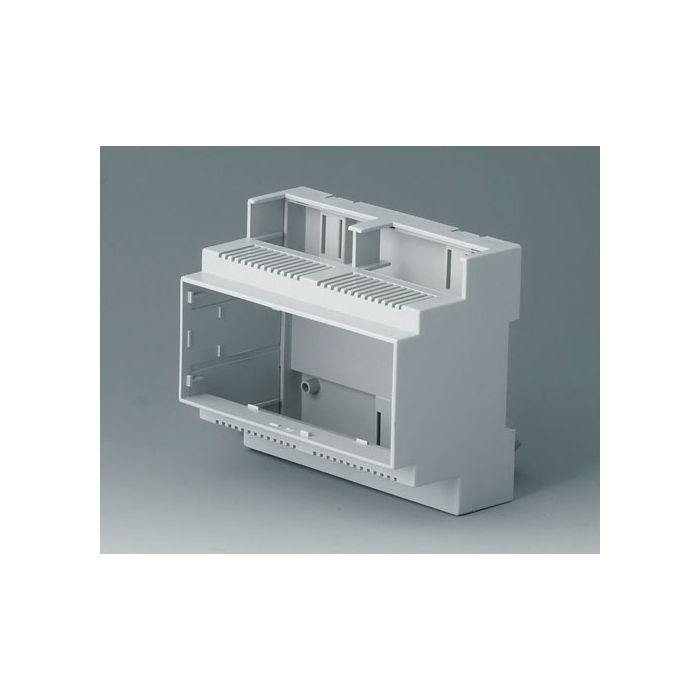

OKW - Enclosure with 1 open side, fast locking, vertical/horizontal PCB guides [106 mm x 90 mm x 58 mm]
Lei 44.00
Lei 36.97
In stock
SKU
B6705103
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Enclosure with 1 open side, fast locking, vertical/horizontal PCB guides
Enclosure with 1 side open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.
Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)
1 bottom part, 3 clips, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B6705103 |
|---|---|
| Manufacturer | OKW |
| Material | PC (UL 94 V-0) |
| Colour | Bottom and top part light grey, Locking clip black/translucent |
| Standards | RoHS compliant, DIN EN 60715 TH35, REACH compliant |
| Width | 106 mm |
| Height | 90 mm |
| Depth | 58 mm |
