OKW - Robust plastic enclosure with versatile usage and assembly kit
Lei 150.00
Lei 126.05
In stock
SKU
C2112121
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

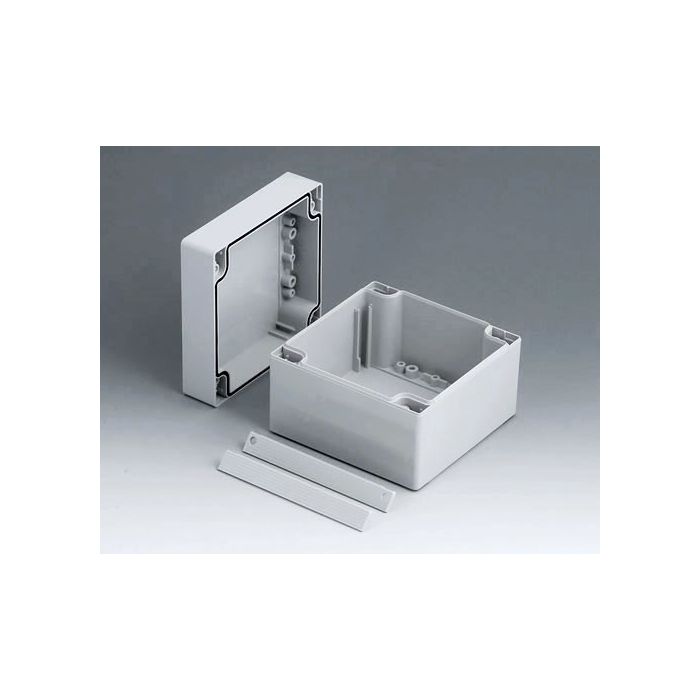

Robust plastic enclosure with versatile usage and assembly kit
Robust plastic enclosure, ideal for electrical and electronic applications. Case shells either usable as top or base part. Each case part contains threads and fixing towers. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for use of membrane keyboards. Supply: 2 case shells with sealing, cover strips top and bottom, assembly kit
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 120 mm |
| Length | 120 mm |
| Height | 90 mm |
| Protection class | IP 66 |
| PCB Length, Base | 80 mm |
| PCB Width, Base | 105 mm |
| PCB Length, Top | 80 mm |
| PCB Width, Top | 105 mm |
| Keypad Length | 82.7 mm |
| Keypad Width | 105.5 mm |
