OKW - DIN Rail Case, Size 1, Terminal Blocks 5.0 / 5.08, Ventilation Slots, Easy Assembly
Lei 46.00
Lei 38.66
Out of stock
SKU
B6504114
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

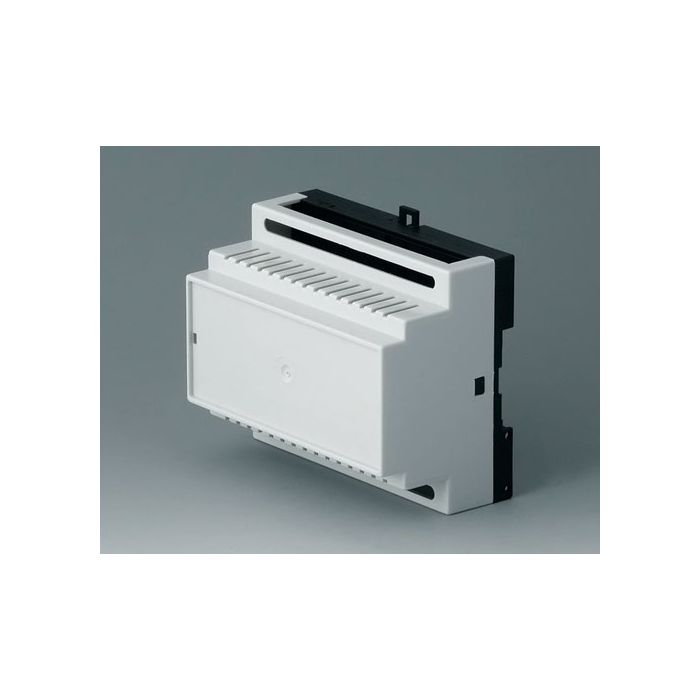

DIN Rail Case, Size 1, Terminal Blocks 5.0 / 5.08, Ventilation Slots, Easy Assembly
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs. Version For terminal blocks 5.0 / 5.08 (36 terminals max.). Supply 1 base part with locking clip, 1 top part
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B6504114 |
|---|---|
| Manufacturer | OKW |
| Material | PC (UL 94 V-0), Top part, PPO (UL 94 V-0), Bottom part |
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 105 mm |
| Height | 86 mm |
| Depth | 59 mm |
| PCB Length, Base | 82.4 mm |
| PCB Width, Base | 99.2 mm |
