OKW - DIN Rail Case, Size 1, Easy Assembly, Ventilation Slots, Vertical & Horizontal Guides, 12 Terminals, 2 Parts
Lei 36.00
Lei 30.25
In stock
SKU
B6503118
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

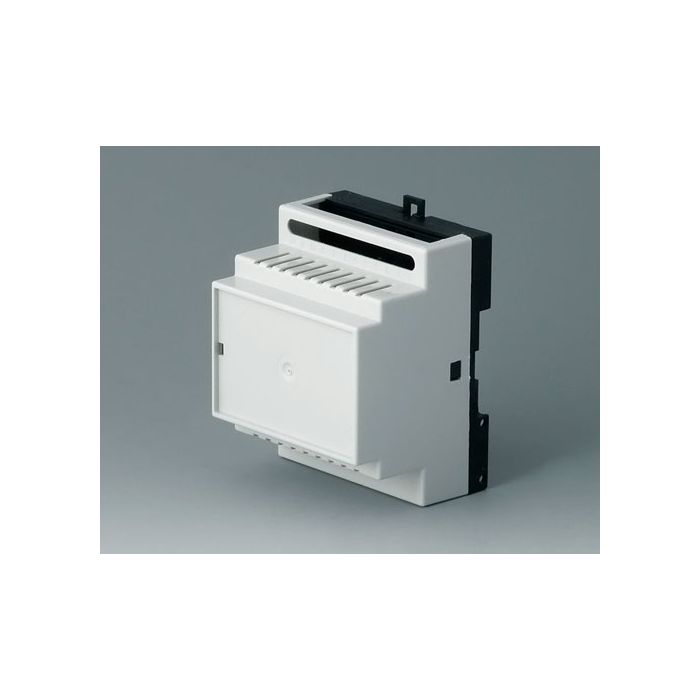

DIN Rail Case, Size 1, Easy Assembly, Ventilation Slots, Vertical & Horizontal Guides, 12 Terminals, 2 Parts
Case corresponds to DIN 43880, size 1. Simple and quick assembly by locking onto DIN-rails EN 60715 TH35. Base part with fixing towers. Top part with ventilation slots. Vertical and horizontal guides for additional PCBs. For terminal blocks 5.0 / 5.08 (12 terminals max., only on bottom). 1 base part with locking clip, 1 top part.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | PC (UL 94 V-0), PPO (UL 94 V-0) |
| Colour | Top part light grey RAL 7035, Bottom part black, Locking clip black |
| Standards | RoHS compliant, DIN EN 60715 TH35, DIN VDE 0470-1, DIN 43880 unit 1, REACH compliant, VBG 4, IEC 529 |
| Width | 70 mm |
| Height | 86 mm |
| Depth | 58 mm |
| PCB Length, Base | 82 mm |
| PCB Width, Base | 64 mm |
