OKW - Desk top case with high base and top part, screwless mounting, front and rear panels slide in.
Lei 204.00
Lei 171.43
In stock
SKU
B3023137
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

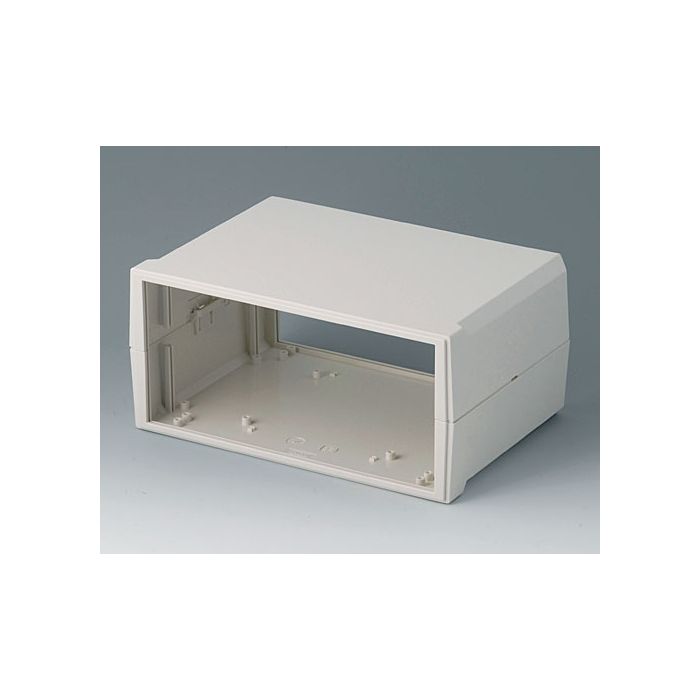

Desk top case with high base and top part, screwless mounting, front and rear panels slide in.
Desk top case with high base and top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory. Supply: 1 top and base part, 4 self-adhesive case feet.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 235 mm |
| Height | 110 mm |
| Depth | 165 mm |
| Protection class | IP 40 |
| PCB Length, Base | 208 mm |
| PCB Width, Base | 150 mm |
| Keypad Length | 210 mm |
| Keypad Width | 97 mm |
