OKW - Desktop case with flat base and high top part, screwless mounting, front and rear panels open.
Lei 81.00
Lei 68.07
In stock
SKU
B3015127
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

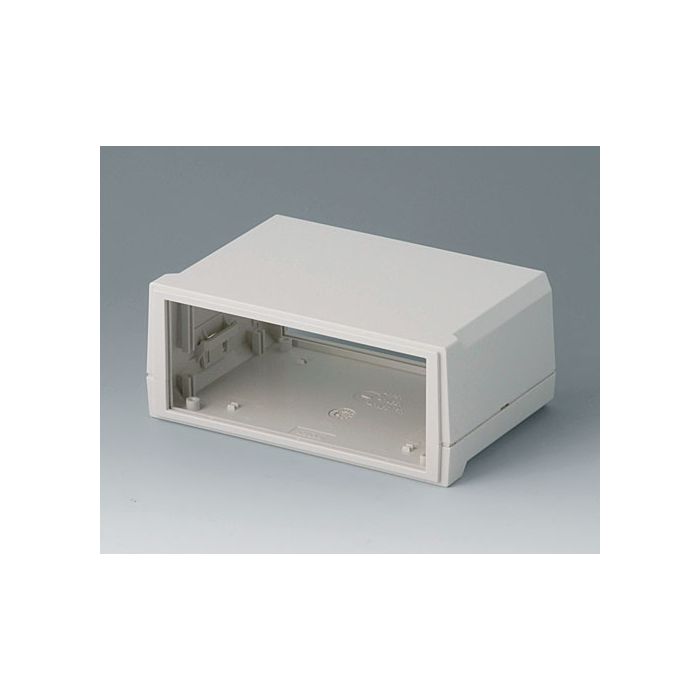

Desktop case with flat base and high top part, screwless mounting, front and rear panels open.
Desk top case with flat base and high top part. Screwless mounting of the shells. Front and rear part open. Screw towers for PCBs and vertical guides for mounting panels. Front and rear panels to slide in as accessory. Supply: 1 top and base part, 4 self-adhesive case feet.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 155 mm |
| Height | 65 mm |
| Depth | 105 mm |
| Protection class | IP 40 |
| PCB Length, Base | 128 mm |
| PCB Width, Base | 90 mm |
| Keypad Length | 132 mm |
| Keypad Width | 53 mm |
