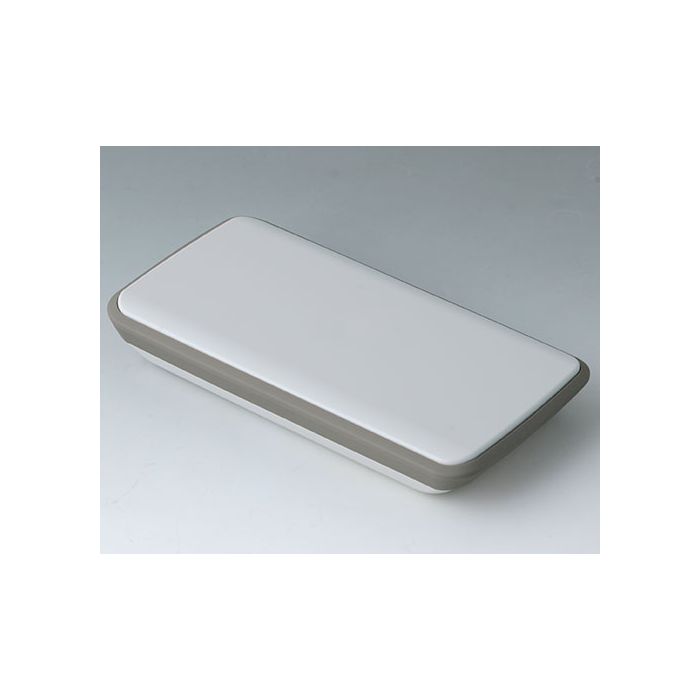

OKW - Handheld enclosure with TPE ring, large operating panel, impact protection, IP 54, flat panel for customization [74 mm x 148 mm x 22 mm]
Lei 95.00
Lei 79.83
In stock
SKU
B5403117
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Handheld enclosure with TPE ring, large operating panel, impact protection, IP 54, flat panel for customization
3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts.
Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | B5403117 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0), SEBS (TPE) |
| Colour | Bottom and top part off-white RAL 9002, Intermediate ring volcano |
| Standards | RoHS compliant, REACH compliant |
| Width | 74 mm |
| Length | 148 mm |
| Height | 22 mm |
| Protection class | IP 54 |
| PCB Length, Base | 126 mm |
| PCB Width, Base | 64 mm |
| PCB Length, Top | 130 mm |
| PCB Width, Top | 64 mm |
