OKW - Compact hand-held enclosure with sealing and ergonomic design
Lei 127.00
Lei 106.72
In stock
SKU
A9005108
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

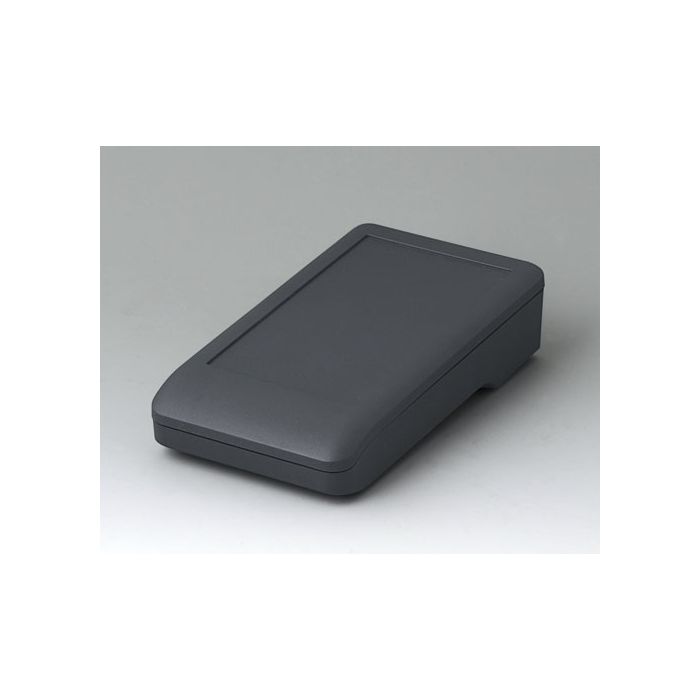

Compact hand-held enclosure with sealing and ergonomic design
2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9005108 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | lava |
| Standards | RoHS compliant, REACH compliant |
| Width | 74 mm |
| Length | 136 mm |
| Height | 32 mm |
| Protection class | IP 65 |
| PCB Length, Base | 97 mm |
| PCB Width, Base | 65 mm |
| PCB Length, Top | 99 mm |
| PCB Width, Top | 65 mm |
| Keypad Length | 102.6 mm |
| Keypad Width | 55.5 mm |
