OKW - Compact hand-held enclosure with sealing, ideal for miniaturized electronics.
Lei 201.00
Lei 168.91
In stock
SKU
A9006207
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Compact hand-held enclosure with sealing, ideal for miniaturized electronics.

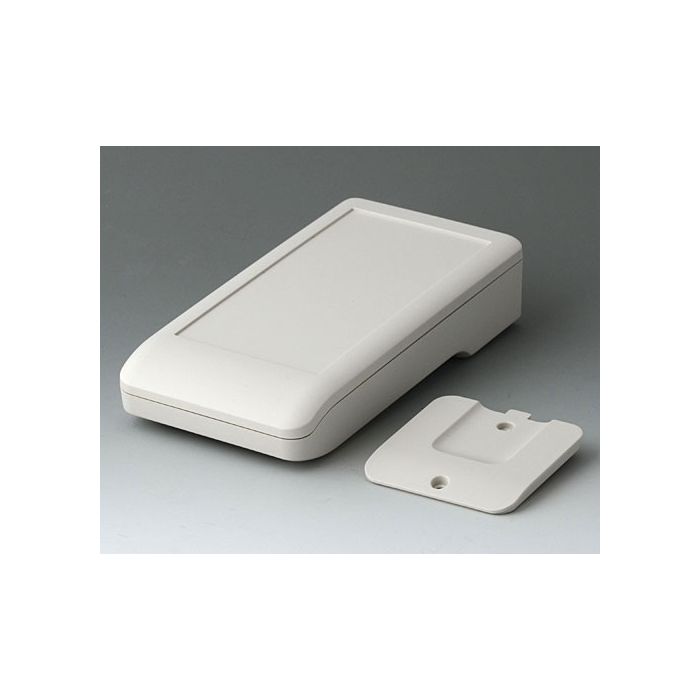

3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9006207 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 92 mm |
| Length | 172 mm |
| Height | 39 mm |
| Protection class | IP 65 |
| PCB Length, Base | 76 mm |
| PCB Width, Base | 77 mm |
| PCB Length, Top | 134 mm |
| PCB Width, Top | 80 mm |
| Keypad Length | 131.5 mm |
| Keypad Width | 69.3 mm |
