OKW - Compact hand-held enclosure, ergonomic design
Lei 137.00
Lei 115.13
In stock
SKU
A9007118
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

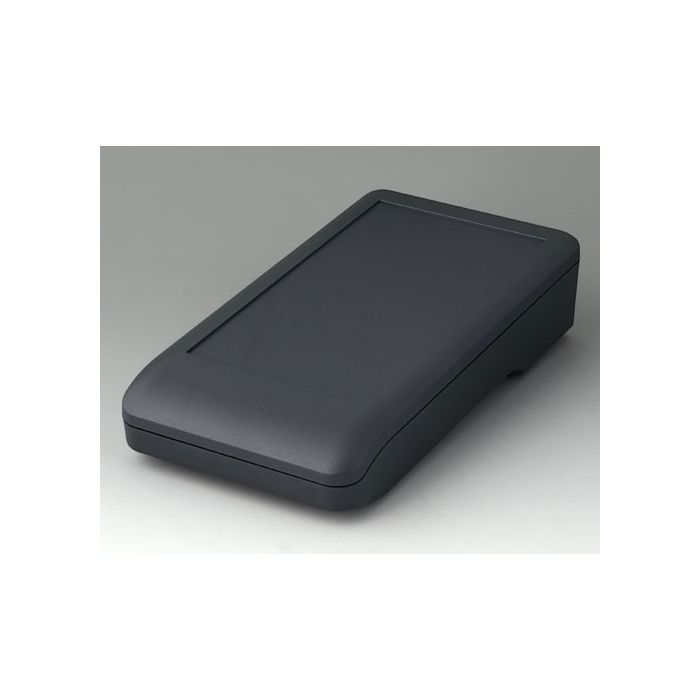

Compact hand-held enclosure, ergonomic design
2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts. Version: Without battery compartment. Supply: Top and bottom part, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9007118 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | lava |
| Standards | RoHS compliant, REACH compliant |
| Width | 110 mm |
| Length | 206 mm |
| Height | 47 mm |
| Protection class | IP 41 |
| PCB Length, Base | 163 mm |
| PCB Width, Base | 98 mm |
| PCB Length, Top | 165 mm |
| PCB Width, Top | 100 mm |
| Keypad Length | 157.3 mm |
| Keypad Width | 83.3 mm |
