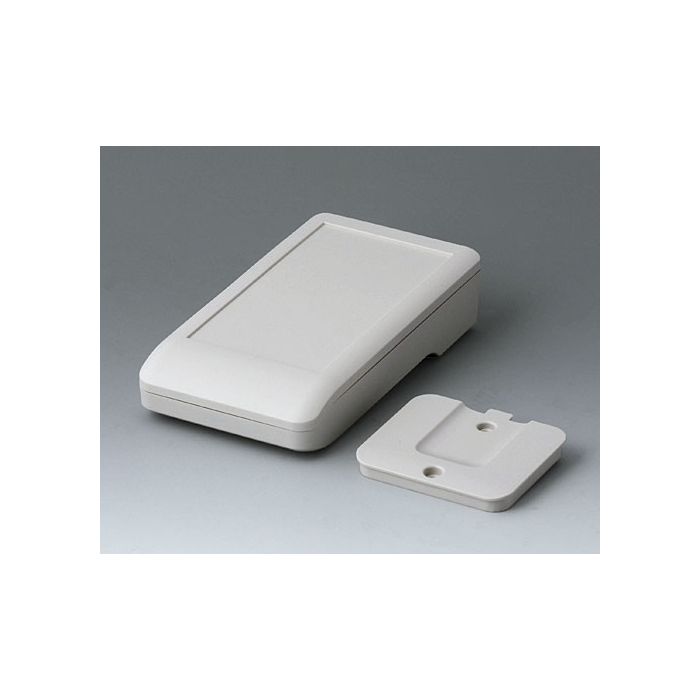

OKW - Compact hand-held enclosure for miniaturized electronics with ergonomic design. [74 mm x 136 mm x 32 mm]
Lei 139.00
Lei 116.81
In stock
SKU
A9005217
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Compact hand-held enclosure for miniaturized electronics with ergonomic design.
3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and centre of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AAA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9005217 |
|---|---|
| Manufacturer | OKW |
| Material | ASA+PC (UL 94 V-0) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 74 mm |
| Length | 136 mm |
| Height | 32 mm |
| Protection class | IP 41 |
| PCB Length, Base | 50 mm |
| PCB Width, Base | 65 mm |
| PCB Length, Top | 64 mm |
| PCB Width, Top | 65 mm |
| Keypad Length | 102.6 mm |
| Keypad Width | 55.5 mm |
