OKW - Small hand-held case with recessed area for keyboards, control elements, and battery compartment for 9V or 1.5V cells.
Lei 63.00
Lei 52.94
Out of stock
SKU
A9062017
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

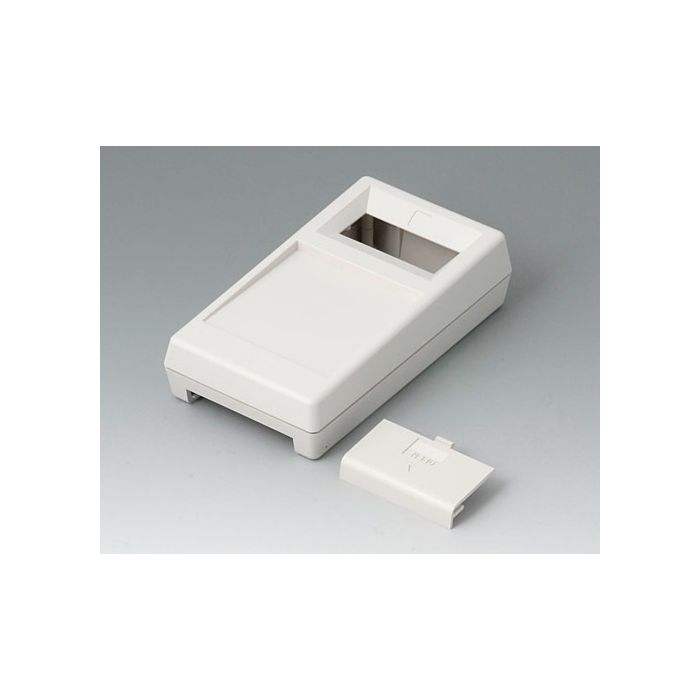

Small hand-held case with recessed area for keyboards, control elements, and battery compartment for 9V or 1.5V cells.
Small hand-held case with excellent design. With recessed area, e.g. for membrane keyboards, control elements. Cut-out section for digital and analogical modules. Battery compartment accessible from the outside with locked battery compartment lid. Raised front area to accommodate plugs. Version: With battery compartment for 9 V flat batteries (PP3) or 1.5 V baby cells (C) with contacts for soldering. Supply: Top and base part, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9062017 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 80 mm |
| Length | 145 mm |
| Height | 38.5 mm |
| PCB Length, Base | 102 mm |
| PCB Width, Base | 71 mm |
| PCB Length, Top | 106 mm |
| PCB Width, Top | 71 mm |
| Keypad Length | 65 mm |
| Keypad Width | 64.9 mm |
