OKW - Small hand-held box, attractive design, IP65 sealing, display cutout for 2''-LC-modules. [83 mm x 152 mm x 33.5 mm]
Lei 124.00
Lei 104.20
In stock
SKU
A9073217
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

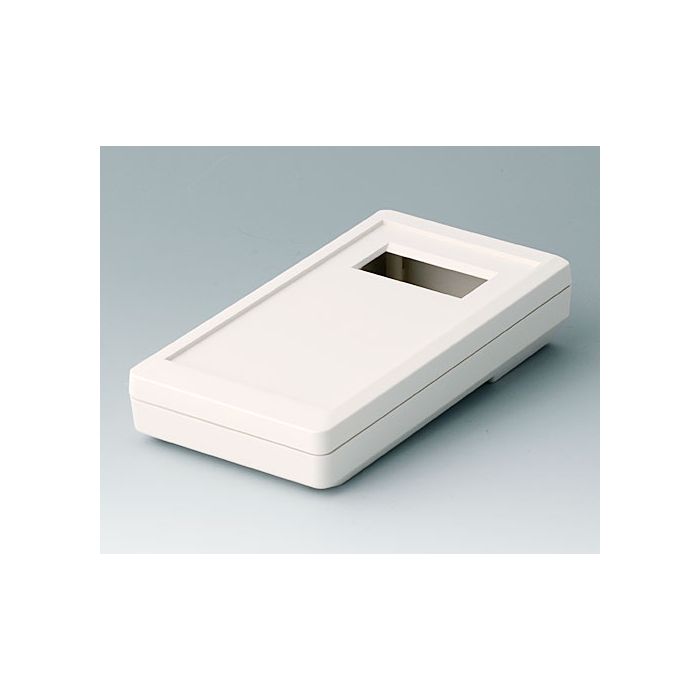

Small hand-held box, attractive design, IP65 sealing, display cutout for 2''-LC-modules.
Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory. Top with display cutout for 2"-LC-modules with active area 45.8 x 17.8 mm. Case-top and base, battery compartment lid, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer code | A9073217 |
|---|---|
| Manufacturer | OKW |
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 83 mm |
| Length | 152 mm |
| Height | 33.5 mm |
| Protection class | IP 65 opt. |
| PCB Length, Base | 142 mm |
| PCB Width, Base | 72 mm |
| PCB Length, Top | 141 mm |
| PCB Width, Top | 72 mm |
| Keypad Length | 129 mm |
| Keypad Width | 67.7 mm |
