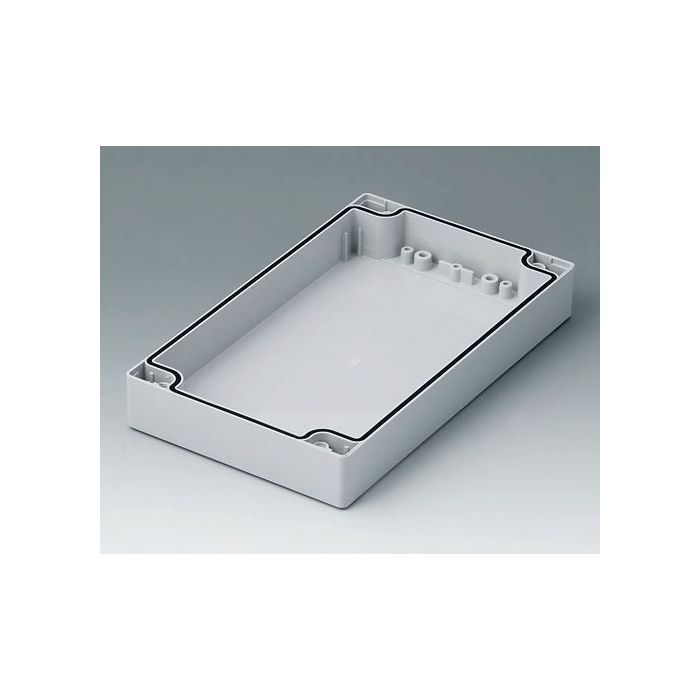

OKW - Case shell with thread and fixing towers, suitable for membrane keyboards. [120 mm x 200 mm x 30 mm]
Lei 105.00
Lei 88.24
In stock
SKU
C1122002
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products
Case shell with thread and fixing towers, suitable for membrane keyboards.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case. Supply 1 case shell with groove.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer code | C1122002 |
|---|---|
| Manufacturer | OKW |
| Material | PC (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 120 mm |
| Length | 200 mm |
| Height | 30 mm |
| PCB Length, Top | 160 mm |
| PCB Width, Top | 105 mm |
| Keypad Length | 162.4 mm |
| Keypad Width | 105.5 mm |
