OKW - Case shell with thread and fixing towers, can be used as top or bottom part.
Lei 45.00
Lei 37.82
In stock
SKU
C2080801
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

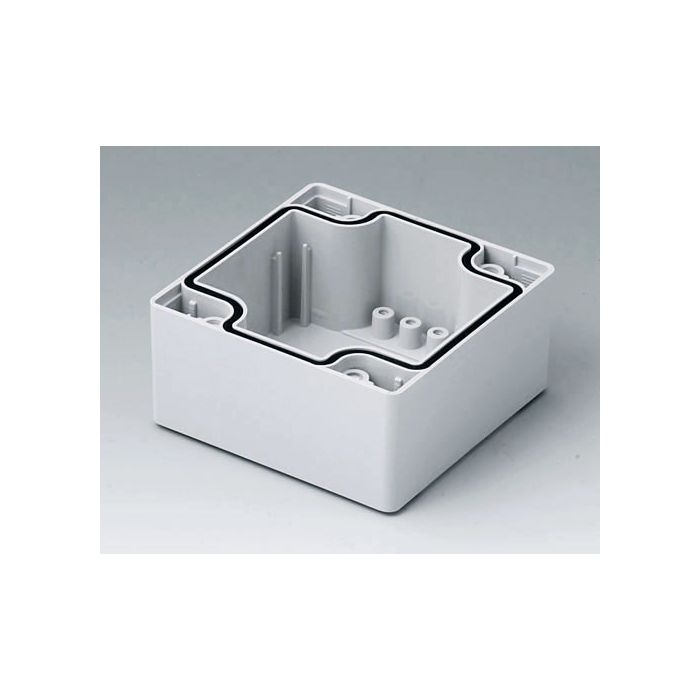

Case shell with thread and fixing towers, can be used as top or bottom part.
Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.8 mm for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.
Documentation: 2D_PDF_Drawing_link
Documentation: 2D_PDF_Drawing_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | light grey RAL 7035 |
| Standards | RoHS compliant, REACH compliant |
| Width | 80 mm |
| Length | 80 mm |
| Height | 40 mm |
| PCB Length, Top | 40 mm |
| PCB Width, Top | 65 mm |
| Keypad Length | 42.4 mm |
| Keypad Width | 65.4 mm |
