OKW - Ergonomic body-worn enclosure with protective features and display panel
Lei 220.00
Lei 184.87
Out of stock
SKU
B7025137
Free shipping for orders over 500 lei
Free shipping applies to cities without additional kilometers or heavy/high volume products

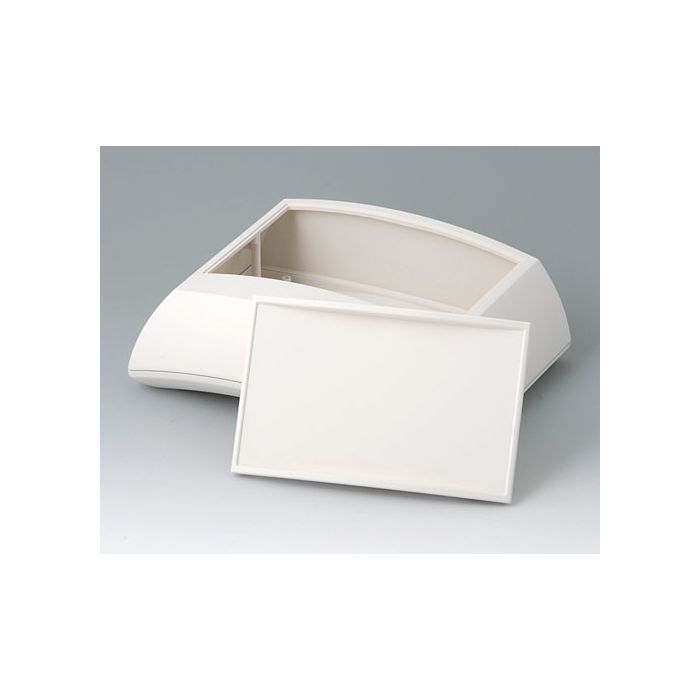

Ergonomic body-worn enclosure with protective features and display panel
Ergonomically shaped enclosure to wear on the body. Recessed operating area in order to protect the membrane keyboards. Plane area for individual interfaces at the end side. Battery compartment lid snapped-on (battery compartment as accessory). With high top part and display panel. Supply: 1 top and 1 bottom part, battery compartment lid, display trim, assembly kit.
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Documentation: 2D_PDF_Drawing_link
Documentation: 3D_PDF_View_link
Write Your Own Review
| Manufacturer | OKW |
|---|---|
| Material | ABS (UL 94 HB) |
| Colour | off-white RAL 9002 |
| Standards | RoHS compliant, REACH compliant |
| Width | 200 mm |
| Length | 150 mm |
| Height | 69 mm |
| Protection class | IP 40 |
| Keypad Length | 83.8 mm |
| Keypad Width | 141.1 mm |
