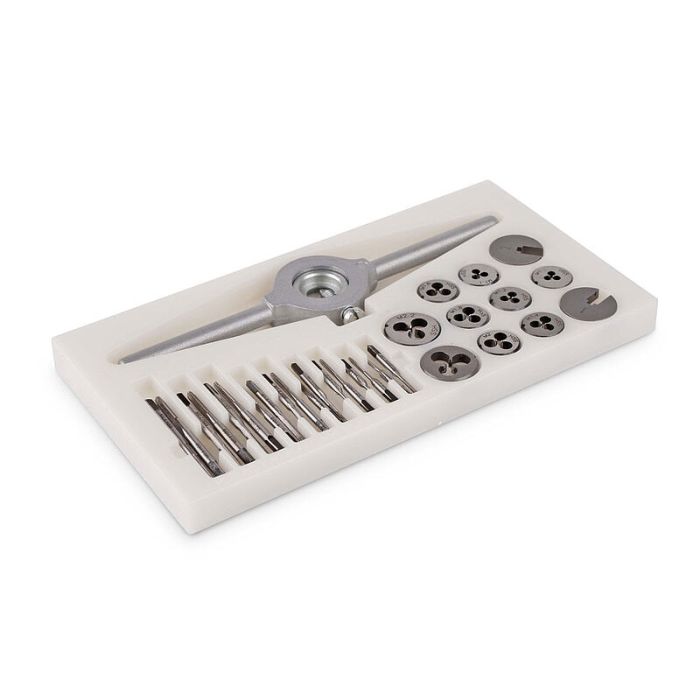

BERNSTEIN, MINIATURE TAP AND DIE SET 30 PCS

• 18 taps, each with a pre-cutter and a finish cutter
• each 2 x hand taps (HGB) each M 1.0 - M 1.1 - M 1.2 - M 1.4 - M 1.6 - M 1.8 - M 2.0 - M 2.2 - 2.5
• each 1 x dies M 1,0 - M 1,1 - M 1,2 - M 1,4 - M 1,6 - M 1,8 - M 2,0 - M 2,2 - M 2,5
• 1 x die holder
• 2 x tap wrenches
• 2 matching reducing rings
• high speed quality steel (HSS) polished
• in a practical storage box
• measures 150 x 85 x 15 mm

AREA OF APPLICATION

The particularly small sizes of the thread cutters are used very frequently in precision mechanics, especially in electronics production, in watchmakers or in model making. Since here usually very small parts are installed and accordingly the threads are also very small. The thread cutting set consists of 18 taps, each with a pre-cutter and a finish cutter. In addition, 9 dies in the same sizes are included in the set. Furthermore, the kit includes a die holder and two matching Reduzierringe. The reducing rings are there to make it possible to clamp the taps in the die holder.

TECHNICAL DESCRIPTION

The cutting tools are manufactured from high-speed-steel and are suitable for unalloyed and low-alloy steels up to 800 N / mm² strength, malleable cast iron and non-ferrous metals.
